GIGABYTEAMD RDNA 4 · Radeon RX 9000

Gigabyte Radeon RX 9070 GAMING OC 16G: RDNA 4 with WINDFORCE Cooling

The RX 9070 GAMING OC (GV-R9070GAMING OC-16GD) runs AMD's RDNA 4 GPU with 56 compute units and 3,584 stream processors at a boost clock of up to 2700 MHz (AMD reference: 2520 MHz). Its 16 GB of GDDR6 runs at 20 Gbps on a 256-bit bus. GIGABYTE's WINDFORCE cooler pairs Hawk fans with server-grade thermal gel, composite copper heat pipes and a large copper plate, and a Dual BIOS switch picks Performance or Silent mode. It takes two 8-pin connectors, with a 750 W PSU recommended.

16GB GDDR6 · 256-bit3,584 Stream ProcessorsUp to 2700 MHzPCIe 5.02× 8-pin · 750W PSU288 mm · Dual BIOS
Gigabyte Radeon RX 9070 GAMING OC 16G graphics card with its retail box

🎮 1440p Gaming with FSR 4

RDNA 4 compute units bring stronger ray tracing, AMD FidelityFX Super Resolution 4 adds AI-powered upscaling with frame generation in supported games, and HYPR-RX turns on Radeon Anti-Lag and the other boosting features in one click.

🧰 Streaming, Creating & AI

The AMD Radiance Display Engine and DisplayPort 2.1a drive next-generation displays, 112 AI accelerators speed up AI features, and 16 GB of VRAM leaves room for large textures and creative projects.

Cooling & Build Quality

Two views of the card, each matched to what GIGABYTE built into it.

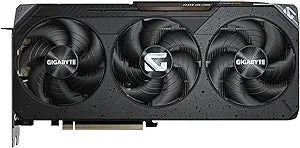

Gigabyte RX 9070 GAMING OC front view with three WINDFORCE Hawk fans
WINDFORCE

Hawk Fans with Alternate Spinning

Three Hawk fans spin in alternating directions to cut turbulence between them. Under them, server-grade thermal conductive gel, a large copper plate and composite copper heat pipes move heat into the fins, and 3D active fans stop when the load is light.

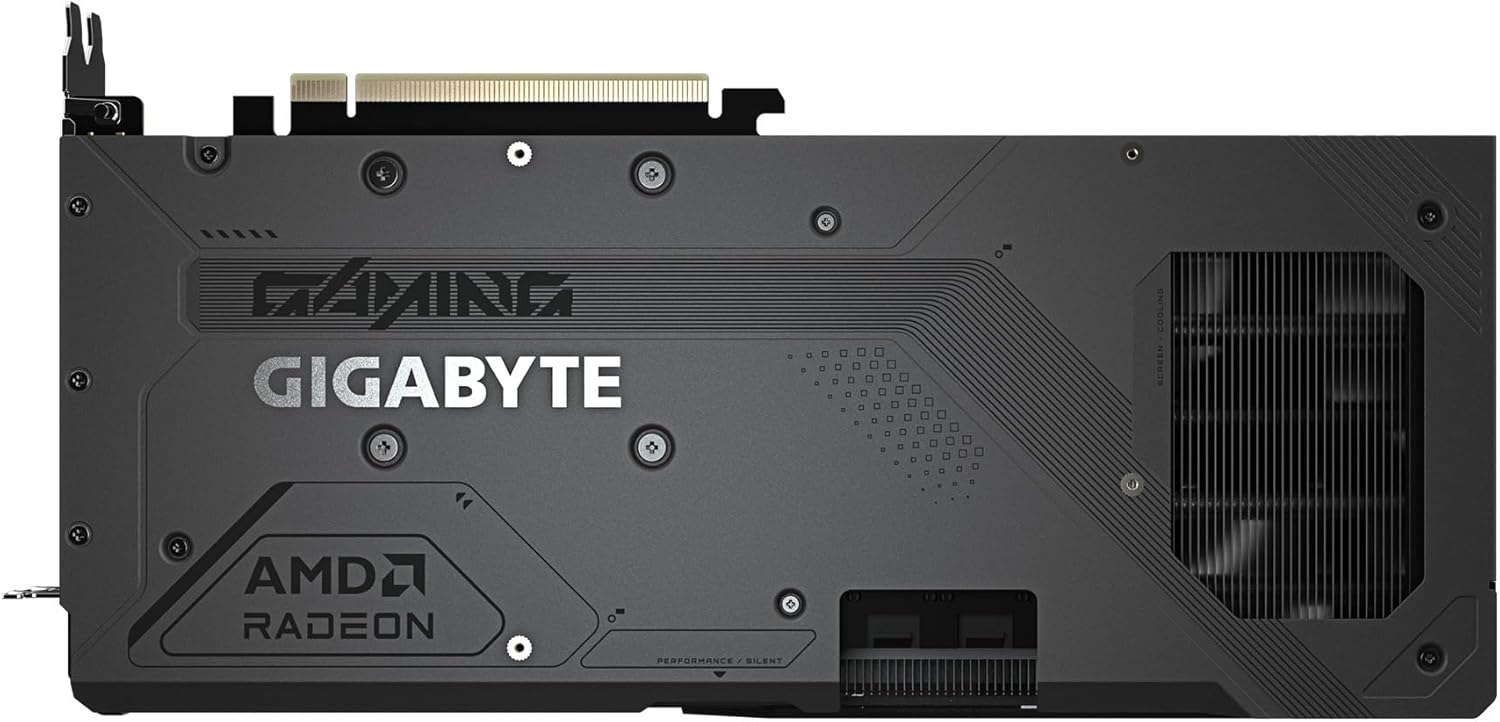

Gigabyte RX 9070 GAMING OC backplate with screen-cooling vent and Dual BIOS label
DUAL BIOS

Reinforced Backplate and Screen Cooling

The reinforced metal backplate has a bent edge fastened to the I/O bracket for rigidity, and its screen-cooling vent at the end lets air pass through the heatsink. The Performance / Silent label marks the Dual BIOS switch: Performance is the factory default, Silent runs quieter.

📊 Compute Index (FP32 TFLOPs)

Peak single-precision (FP32 vector) throughput of each Radeon GPU, from AMD's official specification pages.

Bar length = FP32 TFLOPs
Gigabyte Radeon RX 9070 GAMING OC 16G GDDR6 Graphics Card Black36.1 TFLOPs
56 CU · 3,584 stream processors · 16 GB GDDR6
64 CU · 4,096 stream processors
32 CU · 2,048 stream processors
Source: amd.com Radeon RX 9070 XT (48.7), RX 9070 (36.1) and RX 9060 XT 16GB (25.6) specificationsThis index compares AMD's peak FP32 ratings for the GPU, not frame rate. No verified gaming benchmark for this exact card is published here.

Complete Build Pairing

Build around the RX 9070 GAMING OC with parts available now at AHW Store:

⚡

Power Supplies

GIGABYTE recommends a 750 W power supply with two 8-pin PCIe cables for this card.

View PSUs ↗
🧠

Processors

AMD pairs RX 9000 cards with Ryzen 9000 processors, PCIe 5.0 and Smart Access Memory on AM5.

View CPUs ↗
🖥️

Monitors

A 1440p high-refresh monitor is where 16 GB of VRAM and FSR 4 pay off most.

View Monitors ↗
🏗️

PC Cases

At 288 × 132 × 50 mm, check your case lists at least 288 mm of GPU clearance.

View PC Cases ↗

🛠️ Building a Complete PC?

Use AHW Store's PC Builder to check compatibility, and get professional assembly and stress-testing before delivery.

Launch PC Builder ➔

Verified Technical Datasheet

Official specifications from GIGABYTE's RX 9070 GAMING OC 16G page and AMD's RX 9070 page.

Model GV-R9070GAMING OC-16GD
Graphics Processing AMD Radeon RX 9070 (RDNA 4)
Boost Clock Up to 2700 MHz (reference 2520 MHz)
Game Clock Up to 2210 MHz (reference 2070 MHz)
Stream Processors 3,584 (56 CU)
AI Accelerators 112 (AMD)
Memory 16 GB GDDR6
Memory Clock / Bus 20 Gbps / 256-bit
Card Bus PCI Express 5.0
Outputs 2 × DisplayPort 2.1a · 2 × HDMI 2.1b
Multi-view / Max Resolution 4 · 7680 × 4320
Typical Board Power 220 W (AMD reference)
Power Connectors 2 × 8-pin
Recommended PSU 750 W
Card Size 288 × 132 × 50 mm
Cooling WINDFORCE, Hawk fans, thermal conductive gel, composite copper heat pipes, screen cooling
BIOS Dual BIOS (Performance / Silent)

Frequently Asked Questions & Store Policies

Hardware guidance for this card and AHW Store purchase policies.

HardwareWhat power supply do I need?▾
GIGABYTE recommends a 750 W power supply with two 8-pin PCIe cables. A power indicator on the card flashes if it detects a power supply abnormality.
HardwareWill it fit my case?▾
It measures 288 × 132 × 50 mm. Check that your case lists at least 288 mm of GPU clearance.
HardwareWhat do the two BIOS modes do?▾
Performance is the factory default and gives the best performance; Silent mode runs the fans more quietly. You switch with the BIOS switch on the card.
HardwareHow many monitors can it drive?▾
Four, through two DisplayPort 2.1a and two HDMI 2.1b outputs, at a digital maximum of 7680 × 4320.
HardwareCan I change the RGB lighting?▾
Yes. GIGABYTE CONTROL CENTER offers 16.7 million colours and lighting effects and can sync the card with other devices.
