GIGABYTEAMD RDNA 4 · Radeon RX 9000

Gigabyte Radeon RX 9070 XT GAMING OC 16G: Factory-Overclocked RDNA 4 for 1440p and 4K Gaming

Gigabyte's RX 9070 XT GAMING OC (GV-R9070XTGAMING-OC-16GD) runs AMD's Radeon RX 9070 XT, with 4,096 stream processors (64 compute units, 48.7 TFLOPs FP32). It boosts up to 3060 MHz (reference 2970 MHz), with a game clock up to 2520 MHz. Its 16 GB of GDDR6 runs at 20 Gbps on a 256-bit bus. The three-fan card measures 288 × 132 × 56 mm, takes 3 × 8-pin, and Gigabyte recommends a 850 W power supply.

16GB GDDR6 · 256-bit4,096 Stream ProcessorsUp to 3060 MHzPCIe 5.03 × 8-pin · 850W PSU288 mm · Triple Fan
Gigabyte Radeon RX 9070 XT GAMING OC 16G graphics card with its retail box

🎮 1440p and 4K Gaming with FSR 4

RDNA 4's AI accelerators run AMD FSR 4 upscaling in supported games, and its ray tracing accelerators handle ray-traced lighting and reflections.

🧰 Streaming and Creative Work

16 GB of video memory holds high-resolution textures and large projects, and the media engine encodes AV1, HEVC and H.264 for streaming and exports.

Cooling & Build

Views of the card, each described from Gigabyte's own photos.

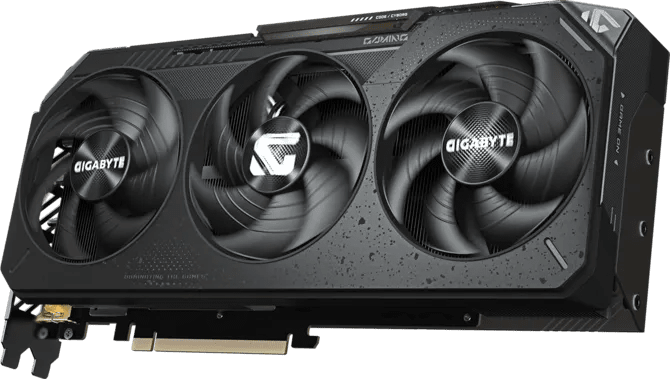

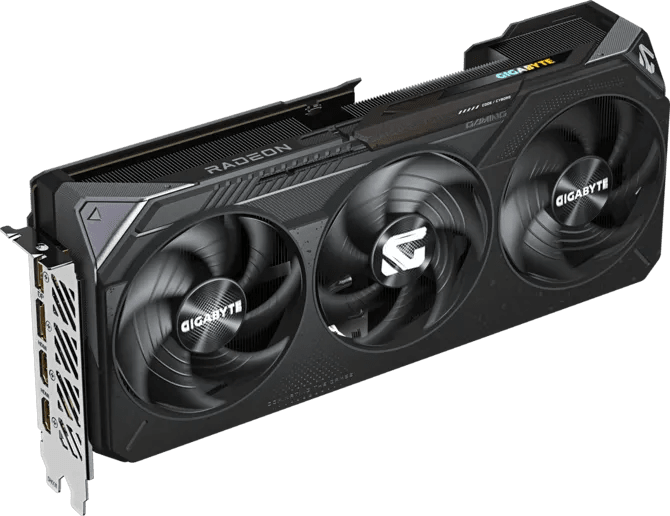

Gigabyte RX 9070 XT GAMING OC front view with three fans
TRIPLE FAN

Three Fans, 288 mm Long

Three fans cover the heatsink of this black card, which measures 288 × 132 × 56 mm; check your case's GPU length.

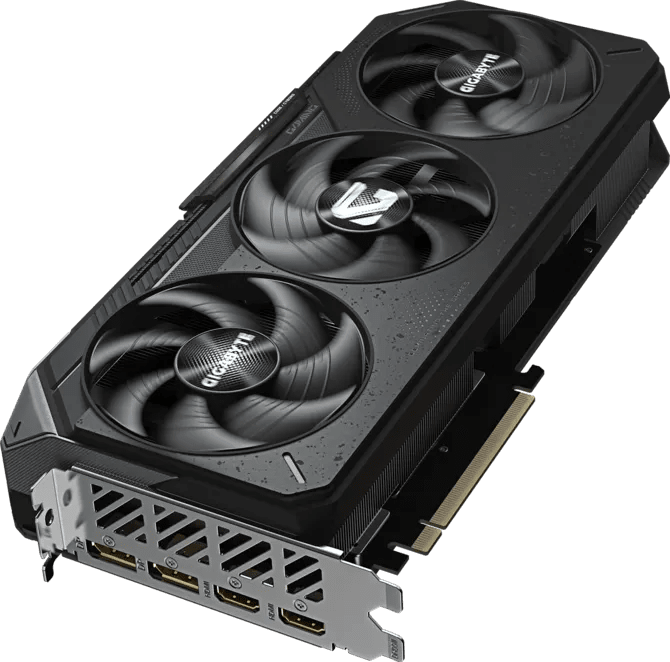

Gigabyte RX 9070 XT GAMING OC with its display outputs
DP 2.1a · HDMI 2.1b

4 Display Outputs

The bracket carries 2 × DisplayPort 2.1a · 2 × HDMI 2.1b, driving up to 4 displays at up to 7680 × 4320.

📊 Compute Performance Index (FP32 TFLOPs)

Peak single-precision compute from AMD's official specification pages.

Bar length = FP32 TFLOPs
Gigabyte Radeon RX 9070 XT GAMING OC 16GB Graphics Card Black48.7 TFLOPs
64 CU · 4,096 stream processors · 16 GB GDDR6
56 CU · 3,584 stream processors
32 CU · 2,048 stream processors
Source: amd.com Radeon RX 9070 XT (48.7), RX 9070 (36.1) and RX 9060 XT 16GB (25.6) specifications, FP32 TFLOPsThis index compares AMD's compute ratings, not frame rate. No verified gaming benchmark for this exact card is published here.

Complete Build Pairing

Build around the RX 9070 XT GAMING OC with parts available now at AHW Store:

⚡

Power Supplies

Gigabyte recommends a 850 W power supply with 3 × 8-pin cables.

View PSUs ↗
🧠

Processors

A current six- or eight-core CPU keeps the RX 9070 XT fed at high frame rates.

View CPUs ↗
🖥️

Monitors

A 1440p and 4K high-refresh monitor with FreeSync suits this card.

View Monitors ↗
🏗️

PC Cases

Check that your case takes a 288 mm card before you order.

View PC Cases ↗

🛠️ Building a Complete PC?

Use AHW Store's PC Builder to check compatibility, and get professional assembly and stress-testing before delivery.

Launch PC Builder ➔

Verified Technical Datasheet

From Gigabyte's specification page for the GV-R9070XTGAMING-OC-16GD and AMD's RX 9070 XT specifications.

Model GV-R9070XTGAMING-OC-16GD
Graphics Engine AMD Radeon RX 9070 XT (RDNA 4)
Compute Units / Stream Processors 64 / 4,096
Boost Clock up to 3060 MHz (reference 2970 MHz)
Game Clock up to 2520 MHz (reference 2400 MHz)
Memory 16 GB GDDR6
Memory Speed / Bus 20 Gbps / 256-bit
Card Bus PCI Express 5.0
Outputs 2 × DisplayPort 2.1a · 2 × HDMI 2.1b
Maximum Displays / Resolution 4 / 7680 × 4320
Power Input 3 × 8-pin
Recommended PSU 850 W
Card Size 288 × 132 × 56 mm
PCB Form ATX
API Support DirectX 12 · OpenGL 4.6
In the Box Quick guide
