PNY GeForce RTX 5060 8GB Overclocked Dual Fan: Factory-OC Blackwell in Two Slots
PNY's overclocked dual-fan RTX 5060 (VCG50608DFXPB1-O) runs NVIDIA's Blackwell GPU, with 3,840 CUDA cores and 614 AI TOPS, at a 2535 MHz boost clock (2280 MHz base). Its 8 GB of GDDR7 runs at 28 Gbps on a 128-bit bus for 448 GB/s. The 2-slot, full-height card draws 145 W through one 8-pin connector, and NVIDIA recommends a 550 W system power supply. PNY covers it with a 3-year warranty.
🎮 1080p and 1440p Gaming with DLSS 4
Fifth-gen Tensor cores run DLSS 4 with Multi Frame Generation in supported games, fourth-gen RT cores handle ray tracing, and NVIDIA Reflex 2 cuts system latency in competitive titles.
🧰 Creators, Streamers & AI
The ninth-gen NVIDIA Encoder speeds up exports and streams, NVIDIA Studio drivers keep creative apps stable, and 614 AI TOPS accelerate local AI tools and NVIDIA Broadcast effects.
Cooling & Build
Four views of the card, each matched to what PNY built into it.

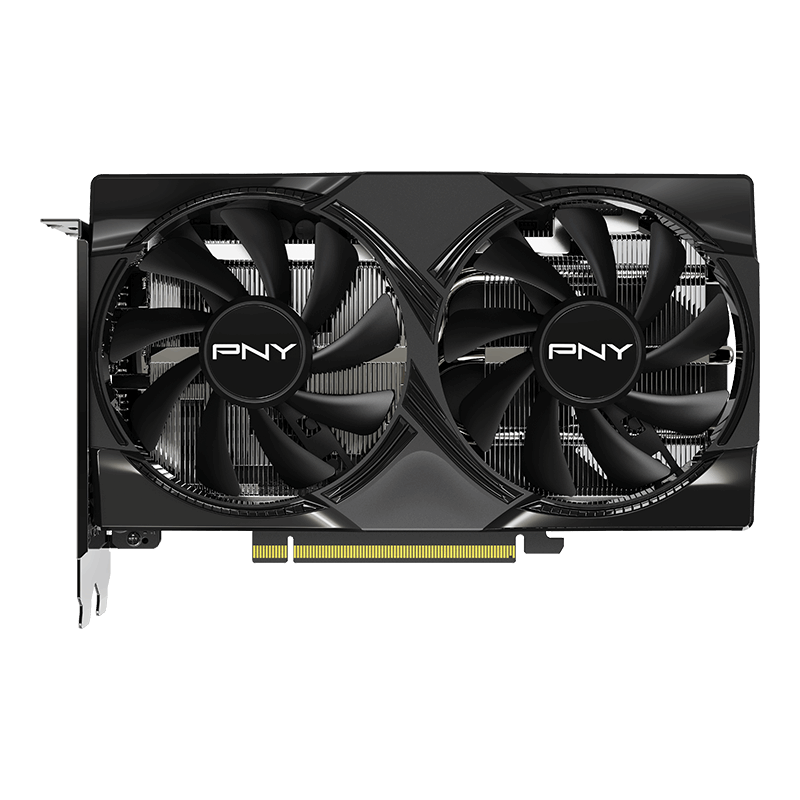

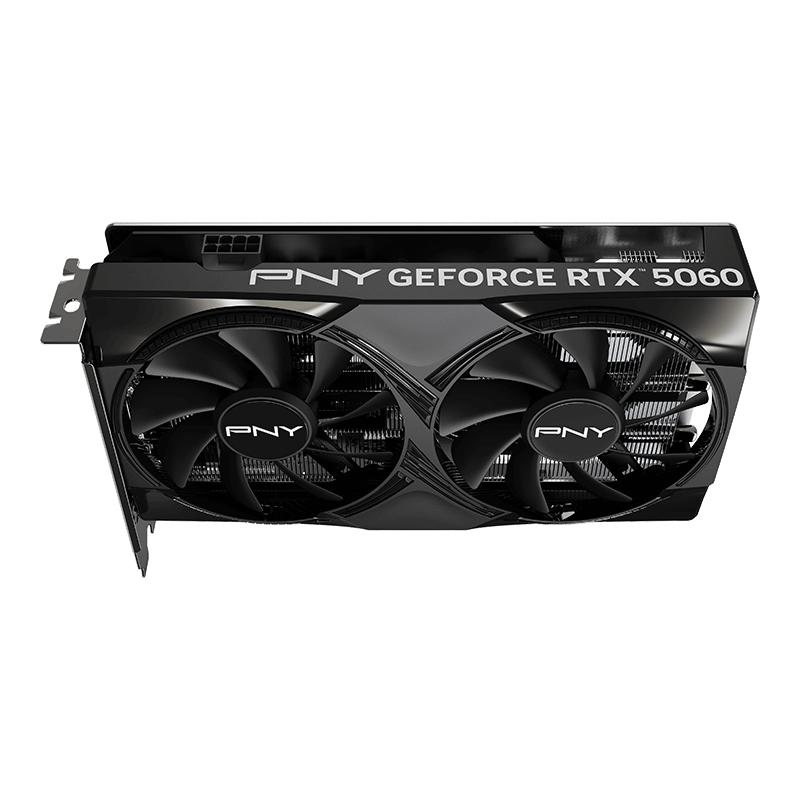

Two Fans over the Heatsink
Two fans cover the length of the heatsink, whose fins and heat pipes you can see between them, in a compact full-height 2-slot shroud.

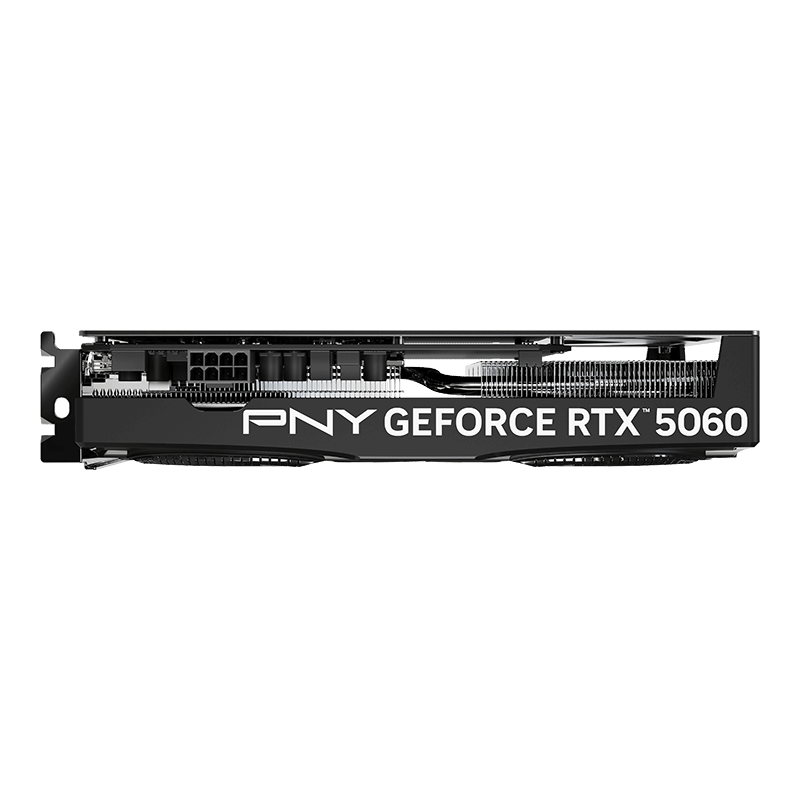

Single 8-pin and Lit Logo
The top edge carries the single 8-pin power socket and the PNY GEFORCE RTX 5060 logo that shows through a side-panel window.

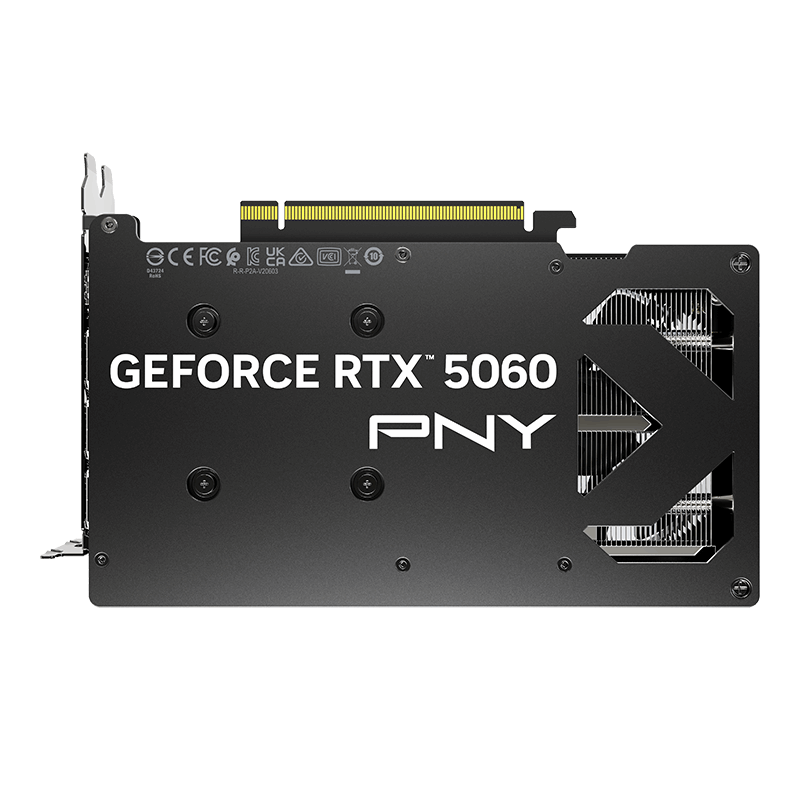

Backplate with Vented End
A full-length backplate protects the PCB, and its open end lets air from the second fan pass through the heatsink fins.

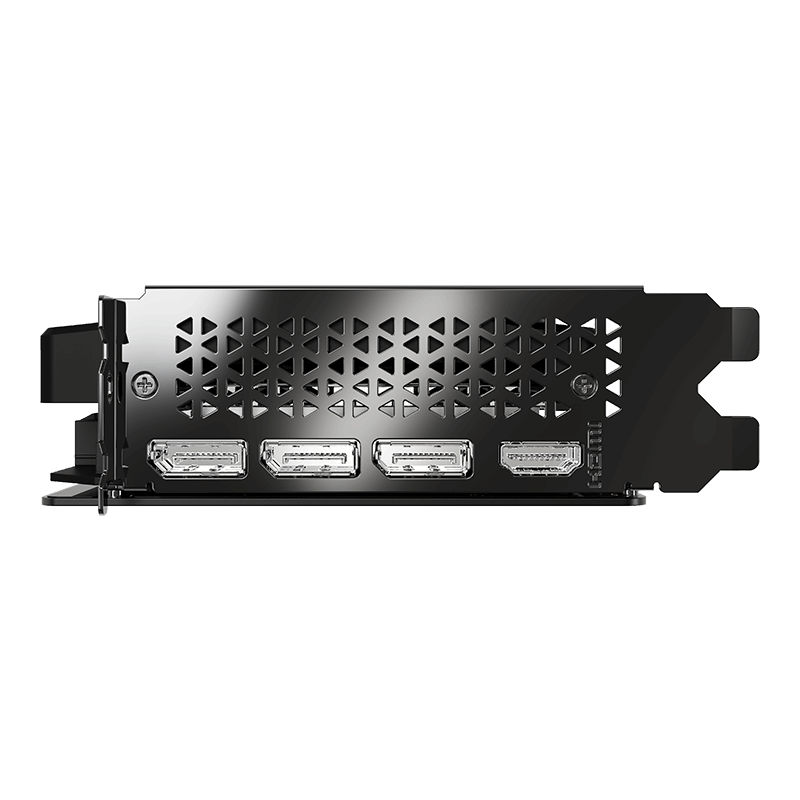

Four Display Outputs
The bracket carries three DisplayPort 2.1b outputs and one HDMI 2.1b, driving up to four displays.
📊 AI Performance Index (AI TOPS)
AI TOPS measure the Tensor-core throughput behind DLSS 4 and local AI features. Figures from NVIDIA's official specification pages.
Bar length = AI TOPSComplete Build Pairing
Build around the RTX 5060 OC Dual Fan with parts available now at AHW Store:
Power Supplies
NVIDIA rates the RTX 5060 at 145 W and recommends a 550 W system power supply; the card takes one 8-pin cable.
Processors
Pair with a current six-core CPU or better so the GPU is not held back at 1080p.
Monitors
A 1080p or 1440p high-refresh monitor makes the most of DLSS 4 Multi Frame Generation.
PC Cases
A full-height 2-slot dual-fan card that fits most ATX and micro-ATX cases; check your case's GPU clearance.
🛠️ Building a Complete PC?
Use AHW Store's PC Builder to check compatibility, and get professional assembly and stress-testing before delivery.
Verified Technical Datasheet
From PNY's GeForce linecard (January 2026) and NVIDIA's RTX 5060 specifications.
| Model | VCG50608DFXPB1-O |
| Graphics Engine | NVIDIA GeForce RTX 5060 (Blackwell) |
| AI Performance | 614 AI TOPS |
| CUDA Cores | 3,840 |
| Base / Boost Clock | 2280 / 2535 MHz |
| Memory | 8 GB GDDR7 |
| Memory Speed / Interface | 28 Gbps / 128-bit |
| Memory Bandwidth | 448 GB/s |
| Outputs | DisplayPort 2.1b · HDMI 2.1b |
| Maximum Displays | 4 |
| TDP | 145 W |
| Power Input | 1 × 8-pin |
| Recommended System Power | 550 W (NVIDIA) |
| Size | 2 slot, full height |
| Cooling | Dual fan |
| Manufacturer Warranty | 3 years (PNY) |
