PNY GeForce RTX 5080 16GB ARGB EPIC-X OC: Overclocked RTX 5080 with EPIC-X RGB
PNY's ARGB overclocked triple-fan RTX 5080 (VCG508016TFXXPB1-O) runs NVIDIA's Blackwell GPU, with 10,752 CUDA cores and 1801 AI TOPS, at a 2775 MHz boost clock (2295 MHz base). Its 16 GB of GDDR7 runs at 30 Gbps on a 256-bit bus for 960 GB/s. The 3-slot, full-height card draws 360 W through a 16-pin connector, with a 16-pin to 3× 8-pin adapter, and NVIDIA lists 850 W of system power. PNY covers it for 3 years.
🎮 4K and 1440p Gaming with DLSS 4.5
Fifth-gen Tensor cores run DLSS 4.5 with Multi Frame Generation in supported games, fourth-gen RT cores handle full ray tracing, and NVIDIA Reflex 2 with Frame Warp cuts latency.
🧰 Creators, Streamers & AI
The ninth-gen NVIDIA Encoder speeds up exports and streams, NVIDIA Studio drivers keep creative apps stable, and 1801 AI TOPS accelerate local AI tools and NVIDIA Broadcast effects.
Cooling & Build
Four views of the card, each described from PNY's own photos.

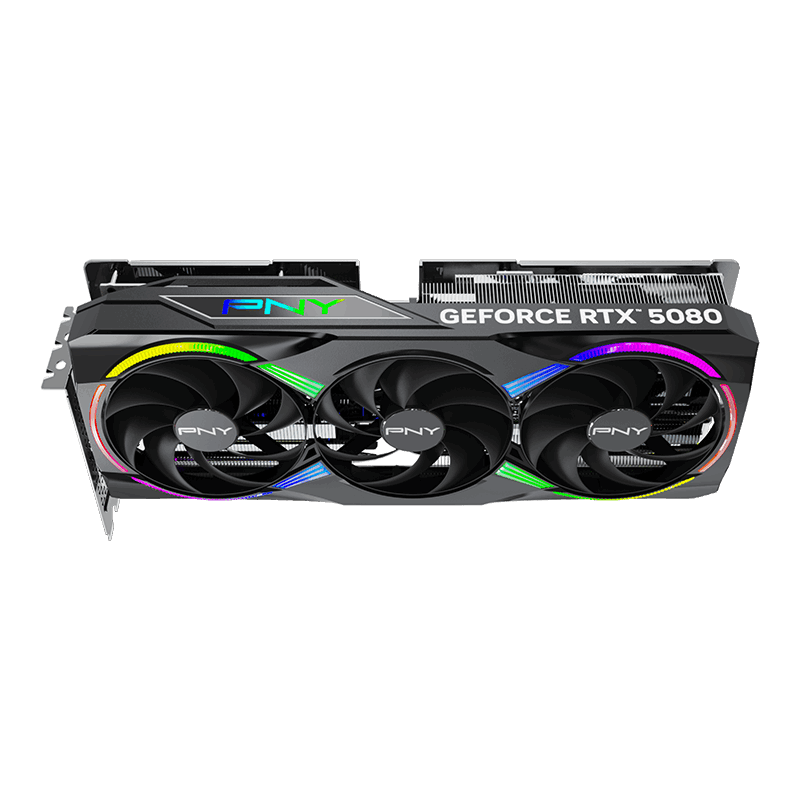

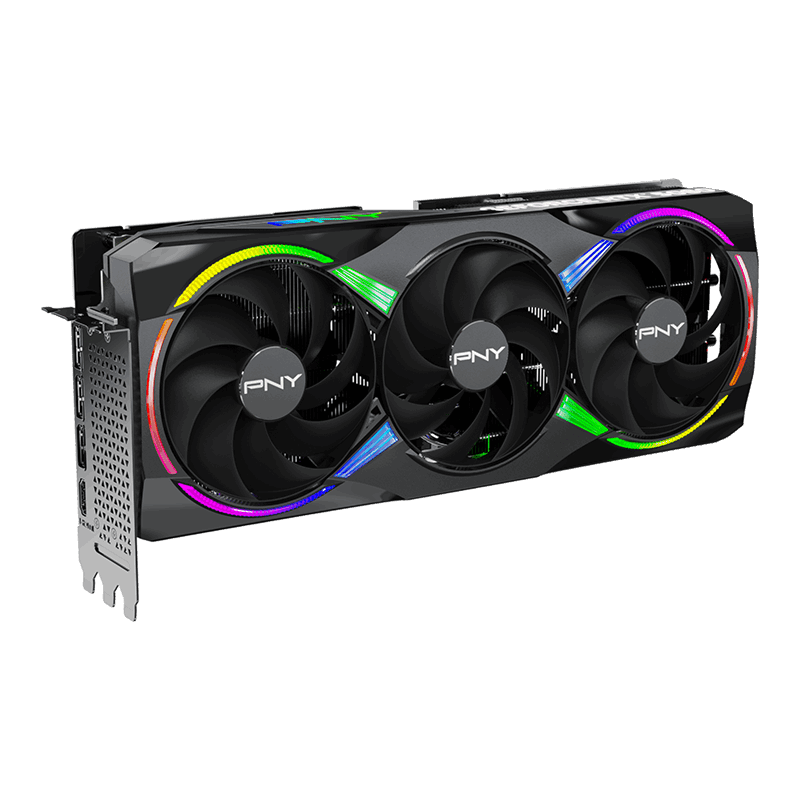

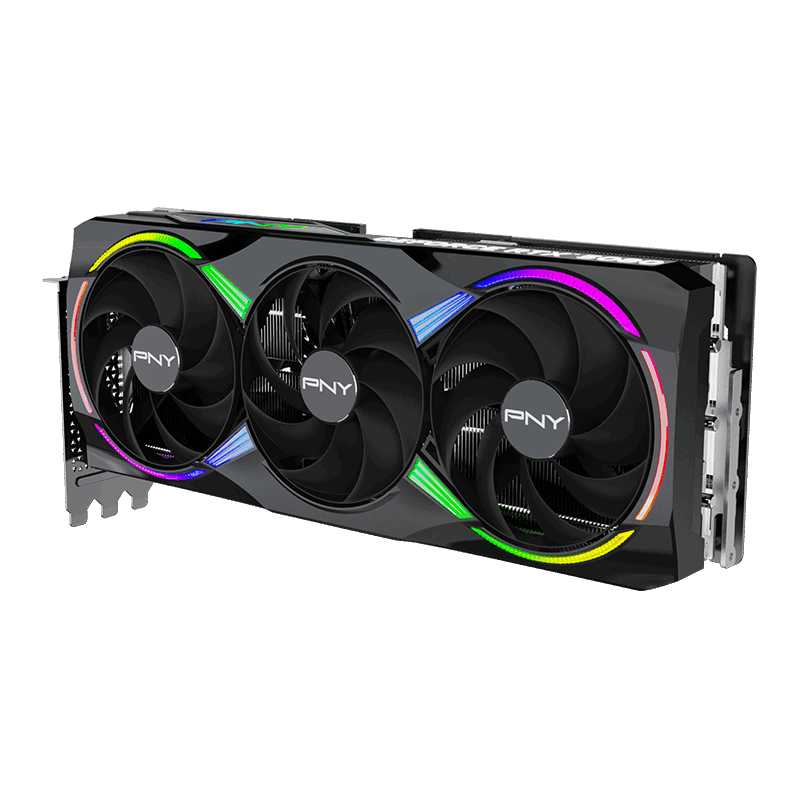

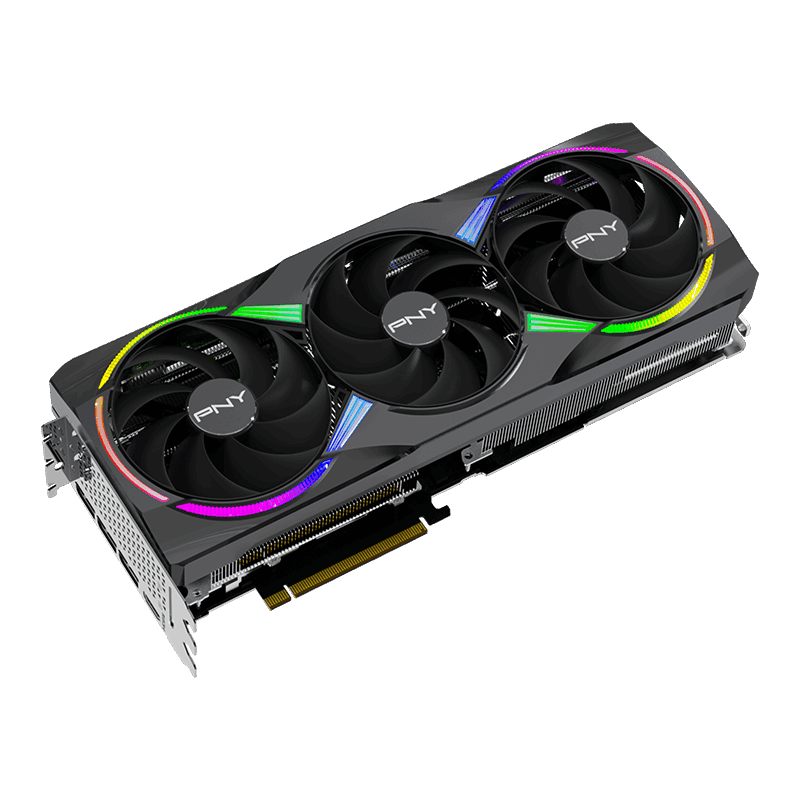

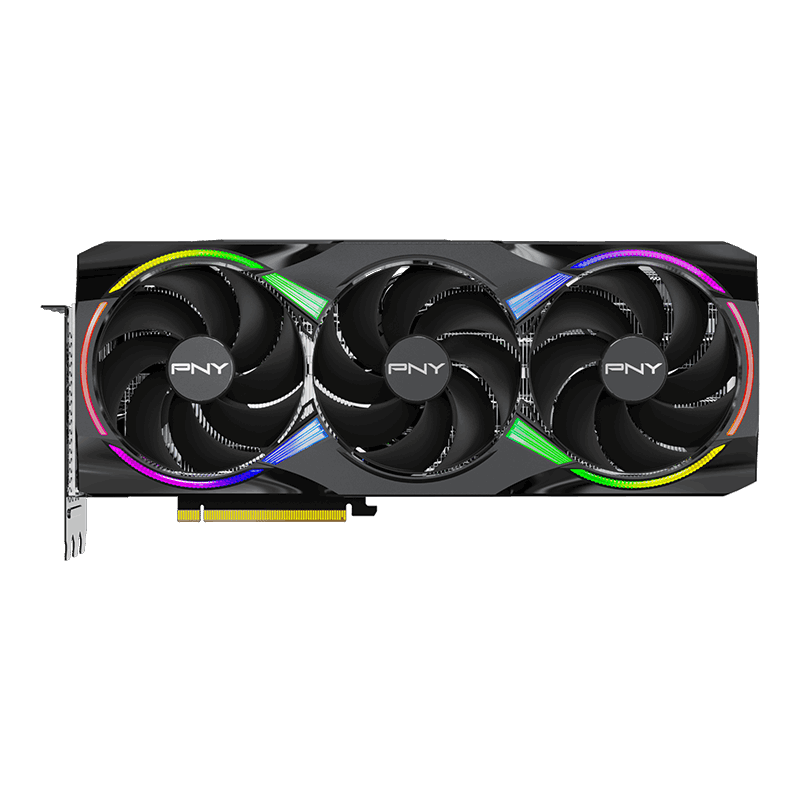

Three Fans with RGB Rings
Three fans sit in a black shroud, each ringed by PNY's EPIC-X RGB lighting, over a heatsink sized for a 360 W GPU.

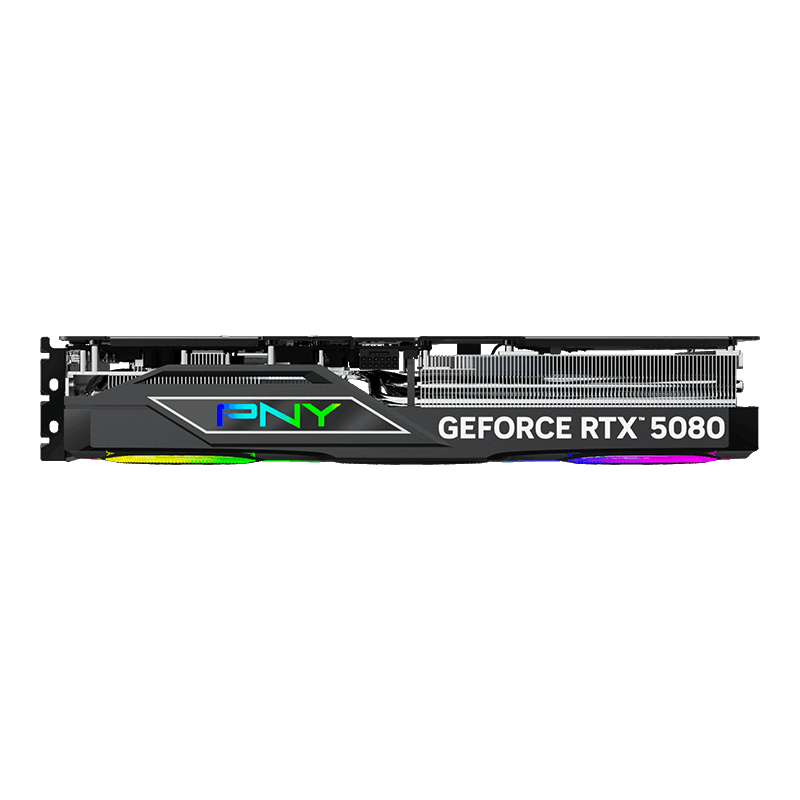

Lit PNY Logo on the Edge
The top edge carries a lit PNY logo and the GEFORCE RTX 5080 name, facing a side window, next to the 16-pin power socket.

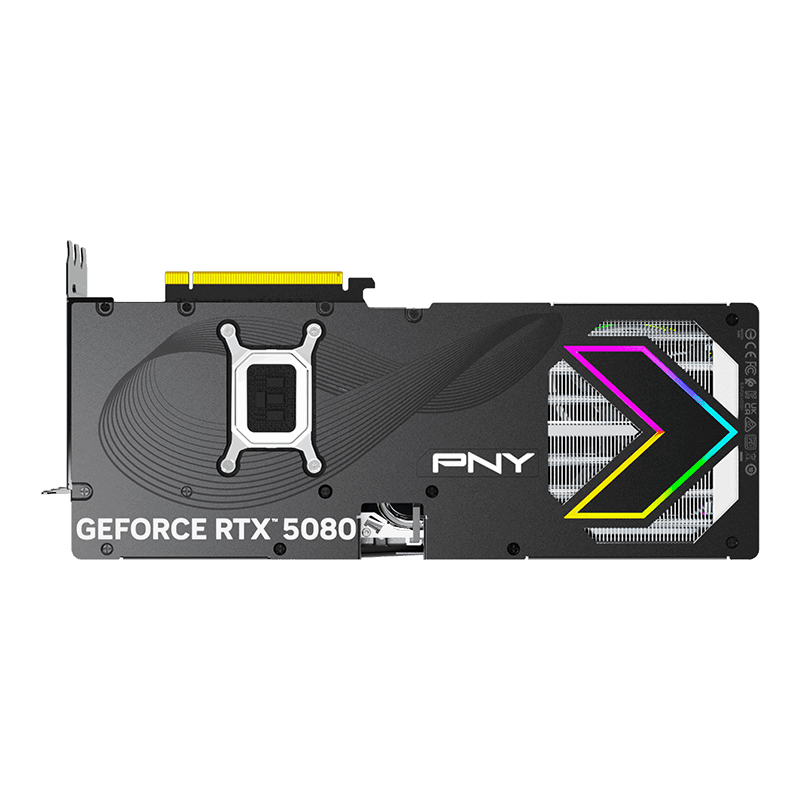

Vented Metal Backplate
A metal backplate stiffens the card against sag; a lit chevron sits over its open end, where air from the third fan passes through the heatsink.

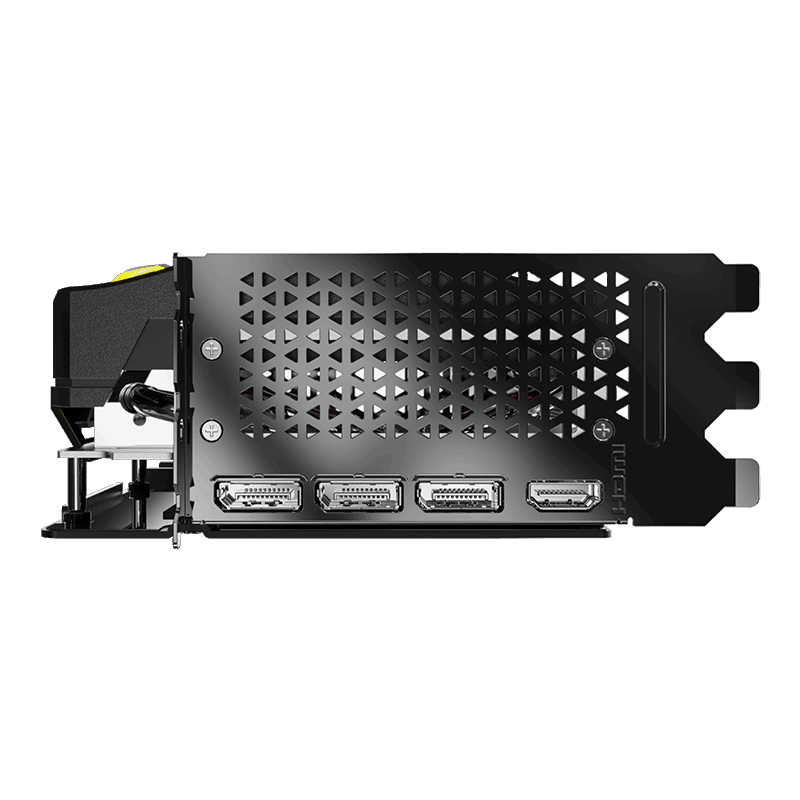

Four Display Outputs
Three DisplayPort 2.1b and one HDMI 2.1b output drive up to four displays.
📊 AI Performance Index (AI TOPS)
AI TOPS measure the Tensor-core throughput behind DLSS and local AI features. Figures from NVIDIA's official specification pages.
Bar length = AI TOPSComplete Build Pairing
Build around the RTX 5080 EPIC-X OC with parts available now at AHW Store:
Power Supplies
NVIDIA lists 850 W of system power for the RTX 5080; a PSU with a native 16-pin cable avoids the adapter.
Processors
A current eight-core CPU keeps the RTX 5080 fed at high frame rates.
Monitors
A 4K or 1440p high-refresh monitor makes the most of DLSS 4.5 Multi Frame Generation.
PC Cases
A 3-slot, full-height triple-fan card needs a mid or full tower; check your case's GPU clearance.
🛠️ Building a Complete PC?
Use AHW Store's PC Builder to check compatibility, and get professional assembly and stress-testing before delivery.
Verified Technical Datasheet
From PNY's GeForce linecard (January 2026) and NVIDIA's RTX 5080 specifications.
| Model | VCG508016TFXXPB1-O |
| Graphics Engine | NVIDIA GeForce RTX 5080 (Blackwell) |
| AI Performance | 1801 AI TOPS |
| CUDA Cores | 10,752 |
| Base / Boost Clock | 2295 / 2775 MHz |
| Memory | 16 GB GDDR7 |
| Memory Speed / Interface | 30 Gbps / 256-bit |
| Memory Bandwidth | 960 GB/s |
| Outputs | DisplayPort 2.1b · HDMI 2.1b |
| Maximum Displays | 4 |
| TDP | 360 W |
| Power Input | 1 × 16-pin (16-pin to 3× 8-pin adapter) |
| Recommended System Power | 850 W (NVIDIA) |
| Size | 3 slot, full height |
| Lighting | EPIC-X RGB |
| Manufacturer Warranty | 3 years (PNY) |
