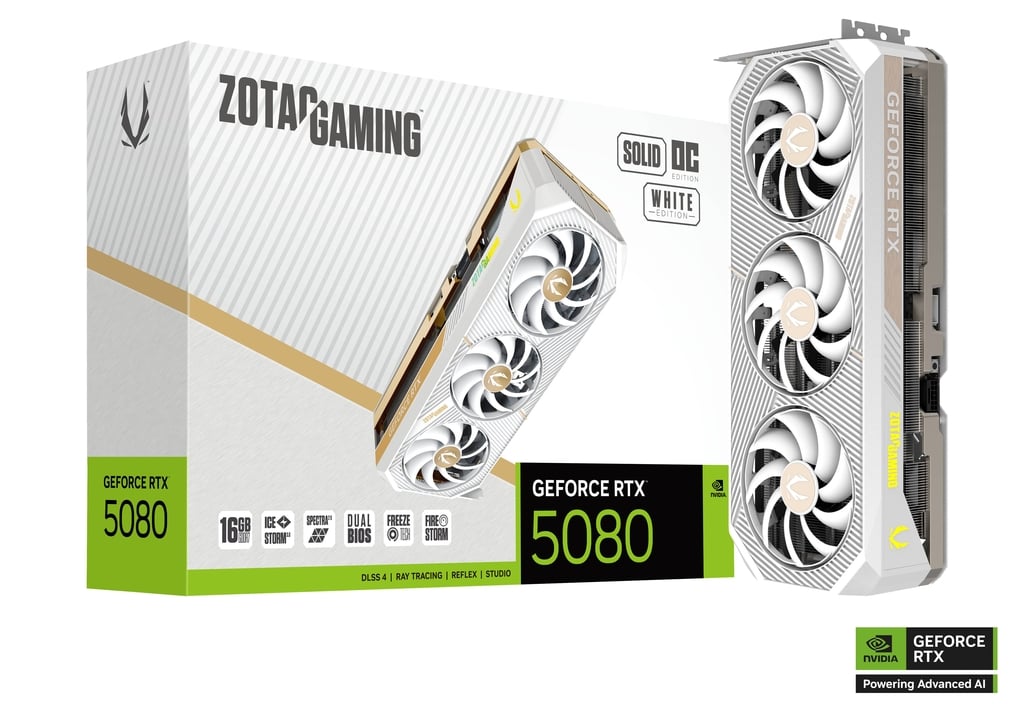

ZOTAC Gaming GeForce RTX 5080 SOLID OC 16GB GDDR7 Graphics Card White
Installment Calculator
Final terms are confirmed at checkout.
Couldn't load pickup availability
ZOTAC GAMING GeForce RTX 5080 SOLID OC White Edition: Flagship-Class Cooling in White
The SOLID OC White Edition (ZT-B50800Q-10P) runs NVIDIA's Blackwell GPU, with 10,752 CUDA cores and 1801 AI TOPS, at a factory 2640 MHz engine clock. Its 16 GB of GDDR7 runs at 30 Gbps on a 256-bit bus. IceStorm 3.0 cooling uses a larger vapor chamber under three BladeLink fans, inside a reinforced metal mid-frame and a die-cast metal backplate, with Dual BIOS and SPECTRA 2.0 RGB. It draws 360 W through one 12V-2x6 connector with a safety light, and ZOTAC recommends an 850 W PSU.
🎮 4K and High-Refresh 1440p Gaming
Fifth-gen Tensor cores run NVIDIA DLSS 4 with Multi Frame Generation in supported games, fourth-gen RT cores handle ray and path tracing, and NVIDIA Reflex cuts system latency in competitive titles.
🧰 Creators, Streamers & Local AI
The ninth-gen NVIDIA Encoder speeds up exports and streams, NVIDIA Studio drivers keep creative apps stable, and 1801 AI TOPS accelerate local AI tools and NVIDIA Broadcast effects.
Cooling & Build Quality
Four views of the card, each matched to what ZOTAC built into it.

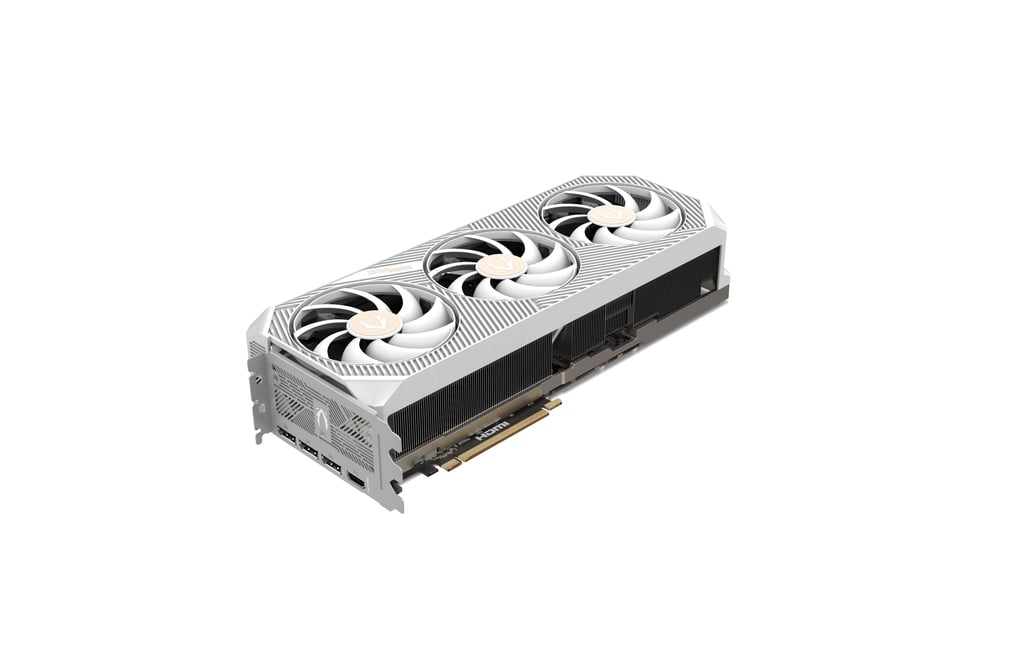

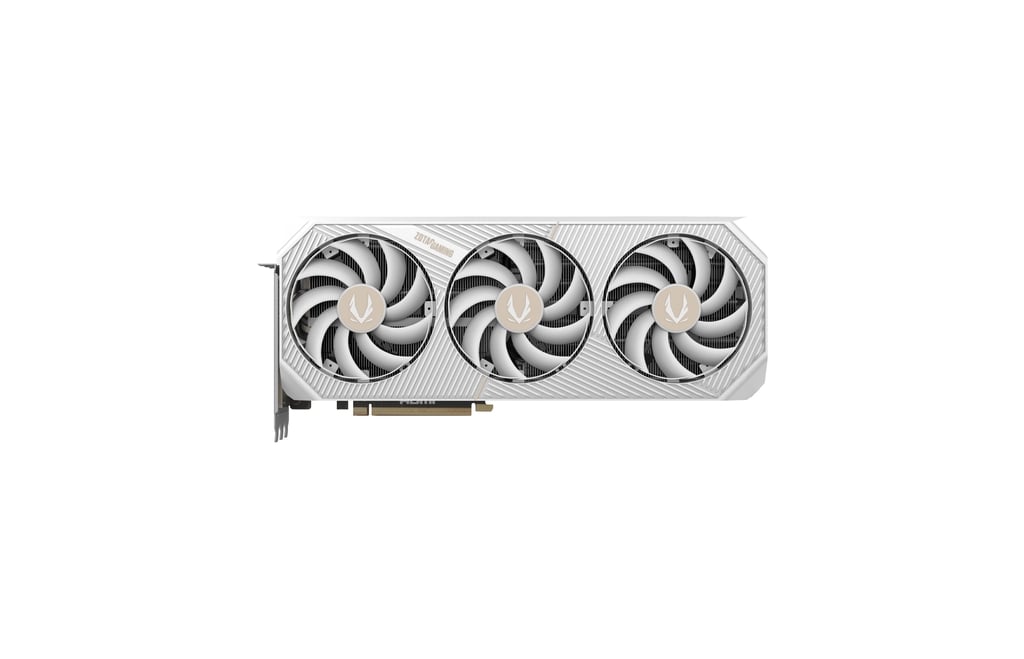

Three BladeLink Fans over a Larger Vapor Chamber
IceStorm 3.0 draws heat into a larger vapor chamber, and three white BladeLink fans push air through the heatsink. FREEZE Fan Stop parks the fans at light load, and active fan control spins each one only as fast as needed.

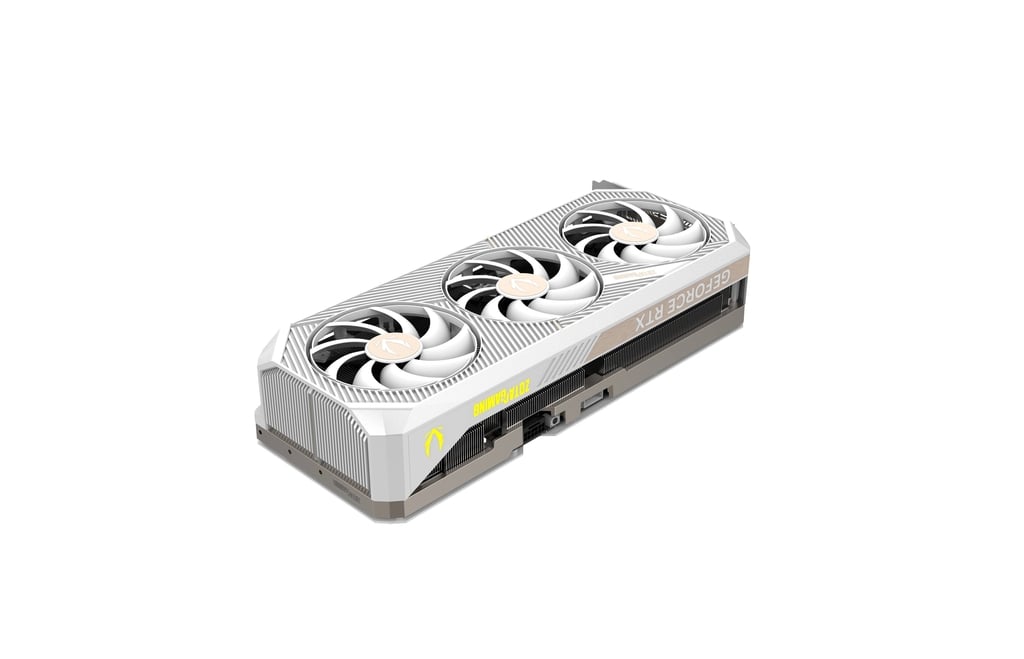

Fin Stack, Power Socket and Lighting
From the side you see the deep fin stack and the single 12V-2x6 socket, which has a safety light that shows when the plug is not fully seated. SPECTRA 2.0 RGB lights the card, and the SPECTRA LINK port syncs it with other lighting.

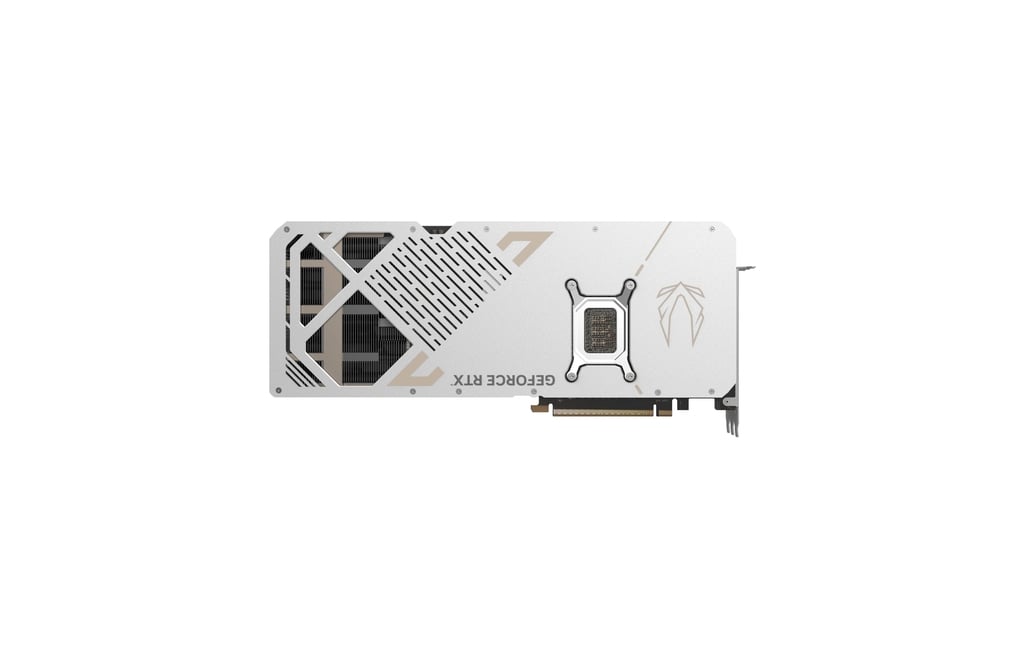

Die-Cast Backplate and Metal Mid-Frame
A metal die-cast backplate and a reinforced metal mid-frame hold the 329.7 mm card rigid, and the backplate's open, vented end lets air from the last fan pass through the fins.

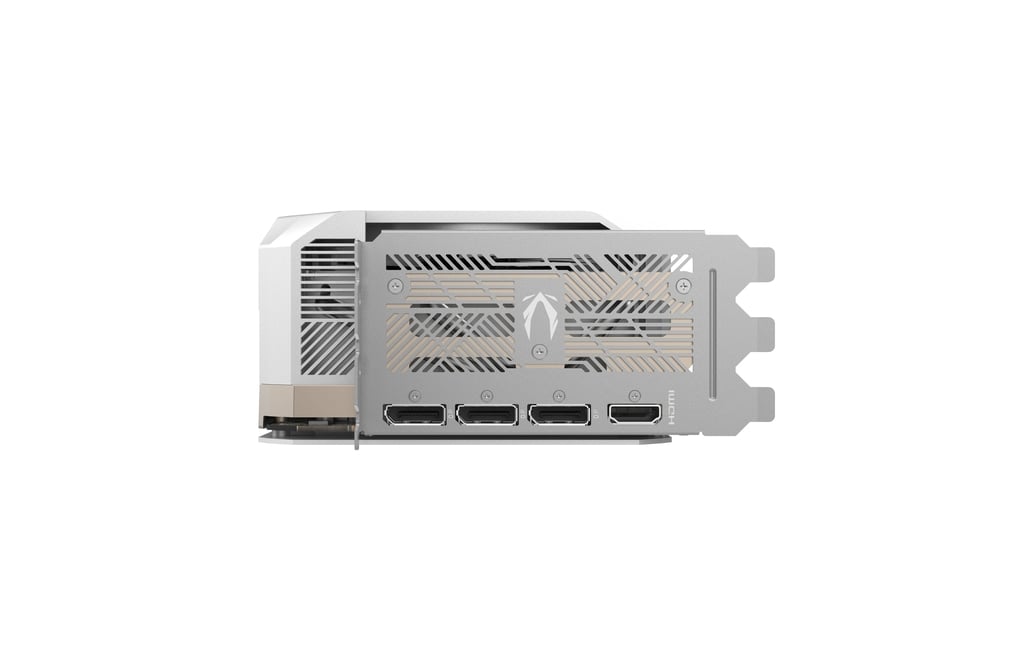

Four Display Outputs
Three DisplayPort 2.1b outputs with UHBR20 (up to 4K 480 Hz or 8K 165 Hz with DSC) and one HDMI 2.1b output (4K 480 Hz HDR or 8K 120 Hz HDR with DSC) drive up to four displays, with HDCP 2.3.
📊 AI Performance Index (AI TOPS)
AI TOPS measure the Tensor-core throughput behind DLSS and local AI features. Figures from ZOTAC's spec page and NVIDIA's official specification pages.
Bar length = AI TOPSComplete Build Pairing
Build around the RTX 5080 SOLID OC White with parts available now at AHW Store:
Power Supplies
ZOTAC recommends an 850 W power supply; one with a native 12V-2x6 (16-pin) cable avoids the adapter.
Processors
A current eight-core or faster CPU keeps the RTX 5080 fed at high refresh rates.
Monitors
A 4K or high-refresh 1440p monitor is where this card's DLSS and ray tracing pay off most.
PC Cases
At 329.7 × 137.8 × 67.8 mm and 3.5 slots, choose a case with at least 330 mm of GPU clearance; a white case matches the card.
🛠️ Building a Complete PC?
Use AHW Store's PC Builder to check compatibility, and get professional assembly and stress-testing before delivery.
Verified Technical Datasheet
Official specifications from ZOTAC's GeForce RTX 5080 SOLID OC White Edition product page.
| Model | ZT-B50800Q-10P |
| Graphics Engine | NVIDIA GeForce RTX 5080 (Blackwell) |
| AI Performance | 1801 AI TOPS |
| CUDA Cores | 10,752 |
| Engine Clock | 2640 MHz |
| Memory | 16 GB GDDR7 |
| Memory Clock / Bus | 30 Gbps / 256-bit |
| Interface | PCI Express 5.0 x16 |
| Outputs | 3 × DisplayPort 2.1b (UHBR20) · 1 × HDMI 2.1b |
| Multi Display / HDCP | Quad display · HDCP 2.3 |
| Power Consumption | 360 W |
| Power Input | 1 × 12V-2x6 (with safety light) |
| Recommended PSU | 850 W |
| Slot Size | 3.5 |
| Dimensions | 329.7 × 137.8 × 67.8 mm |
| Cooling | IceStorm 3.0, larger vapor chamber, BladeLink fans, FREEZE Fan Stop, Dual BIOS |
| Lighting | SPECTRA 2.0 RGB, SPECTRA LINK sync port |
| In the Box | User manual, 3 × 8-pin to 16-pin cable, SPECTRA LINK cable, GPU support stand |
