AMD Ryzen 7 9800X3D Processor 8 Cores 16 Threads 5.2 Ghz Max Boost AM5 Socket Radeon Graphics
Installment Calculator
Final terms are confirmed at checkout.
Couldn't load pickup availability
AMD Ryzen™ 7 9800X3D | Zen 5 with 2nd Gen 3D V-Cache for AM5 Gaming
AMD describes the Ryzen 7 9800X3D as built for faster gaming with 2nd gen AMD 3D V-Cache. It combines 8 Zen 5 cores and 16 threads — 4.7 GHz base, up to 5.2 GHz boost — with 96 MB of L3 at 120 W, and unlike earlier X3D chips it is unlocked for overclocking. It runs DDR5 up to 256 GB and PCIe 5.0 on Socket AM5. AMD includes no cooler and recommends liquid cooling.
Low-Latency Cache for Games
AMD's 2nd gen 3D V-Cache puts 96 MB of L3 beside eight Zen 5 cores, aimed squarely at high-frame-rate gaming with a fast graphics card.
Unlocked X3D
Precision Boost Overdrive, Curve Optimizer and EXPO memory profiles let enthusiasts tune the chip in AMD Ryzen Master.
Silicon Architecture & Visual Engineering
Verified packaging, cache hierarchy, and microarchitecture breakdown

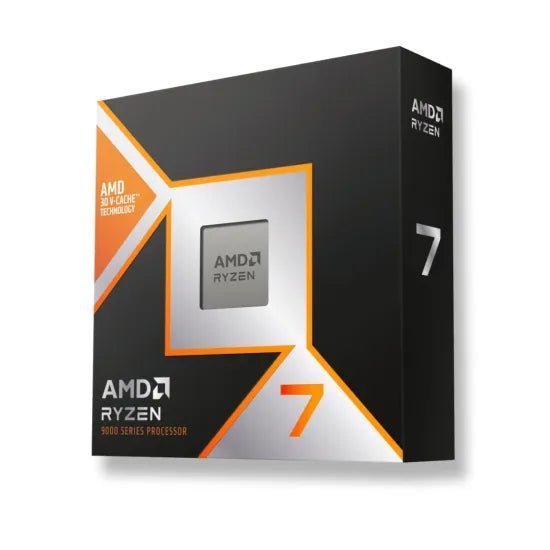

Ryzen 7 9000 Series Retail Box
The boxed package carries the AMD 3D V-Cache badge and the Ryzen 7 mark; AMD lists no thermal solution in the box.
AM5 Heat Spreader, Ryzen 9000 Series
The integrated heat spreader carries the Ryzen 9000 Series marking over two dies: a 4nm Zen 5 compute die with stacked cache and a 6nm I/O die.
L3 Cache Across AMD AM5 Processors
Official L3 cache of AMD processors available at AHW Store
Hardware Synergy & System Pairing Guide
Recommended motherboard, cooling, RAM sweet spot, and power requirements
Technical Specifications Matrix
Verified hardware specifications directly from manufacturer datasheets
| Processor | AMD Ryzen™ 7 9800X3D — boxed · 100-100001084WOF |
|---|---|
| Architecture / Codename | Zen 5 / Granite Ridge |
| Cores / Threads | 8 / 16 |
| Base / Max Boost Clock | 4.7 GHz / up to 5.2 GHz |
| L1 / L2 / L3 Cache | 640 KB / 8 MB / 96 MB |
| Default TDP | 120 W |
| Process | TSMC 4nm FinFET (CPU dies) + 6nm FinFET (I/O die) · 2 dies |
| Socket | AM5 |
| Supported Chipsets | A620, B650, B650E, X670, X670E, B840, B850, X870, X870E |
| PCI Express | PCIe 5.0 · 28 total / 24 usable lanes |
| Memory | DDR5 dual-channel, up to 256 GB; DDR5-5600 (2 modules); ECC with board support |
| Native USB | 4 × USB 3.2 Gen 2 (10 Gbps) + 1 × USB 2.0 |
| Integrated Graphics | AMD Radeon™ Graphics, 2 cores @ 2200 MHz |
| Overclocking | Unlocked · Precision Boost Overdrive · Curve Optimizer · AMD EXPO |
| Max Operating Temp (Tjmax) | 95 °C |
| Cooler | Not included — AMD recommends a liquid cooler |
Hardware Q&A & AHW Store Policies
Technical configurations, cooler recommendations, warranty, installments, and shipping
Does this processor include a cooler?
Which motherboards are compatible?
What memory should I use?
Does it have integrated graphics?
Can the 9800X3D be overclocked?
What warranty does AHW Store provide?
What payment and installment options are available?
How fast is shipping and delivery across Egypt?
Can AHW Store build a complete PC?
What is the return policy?
Shop the range: AMD Ryzen X3D Gaming Processors · AMD AM5 Processors
