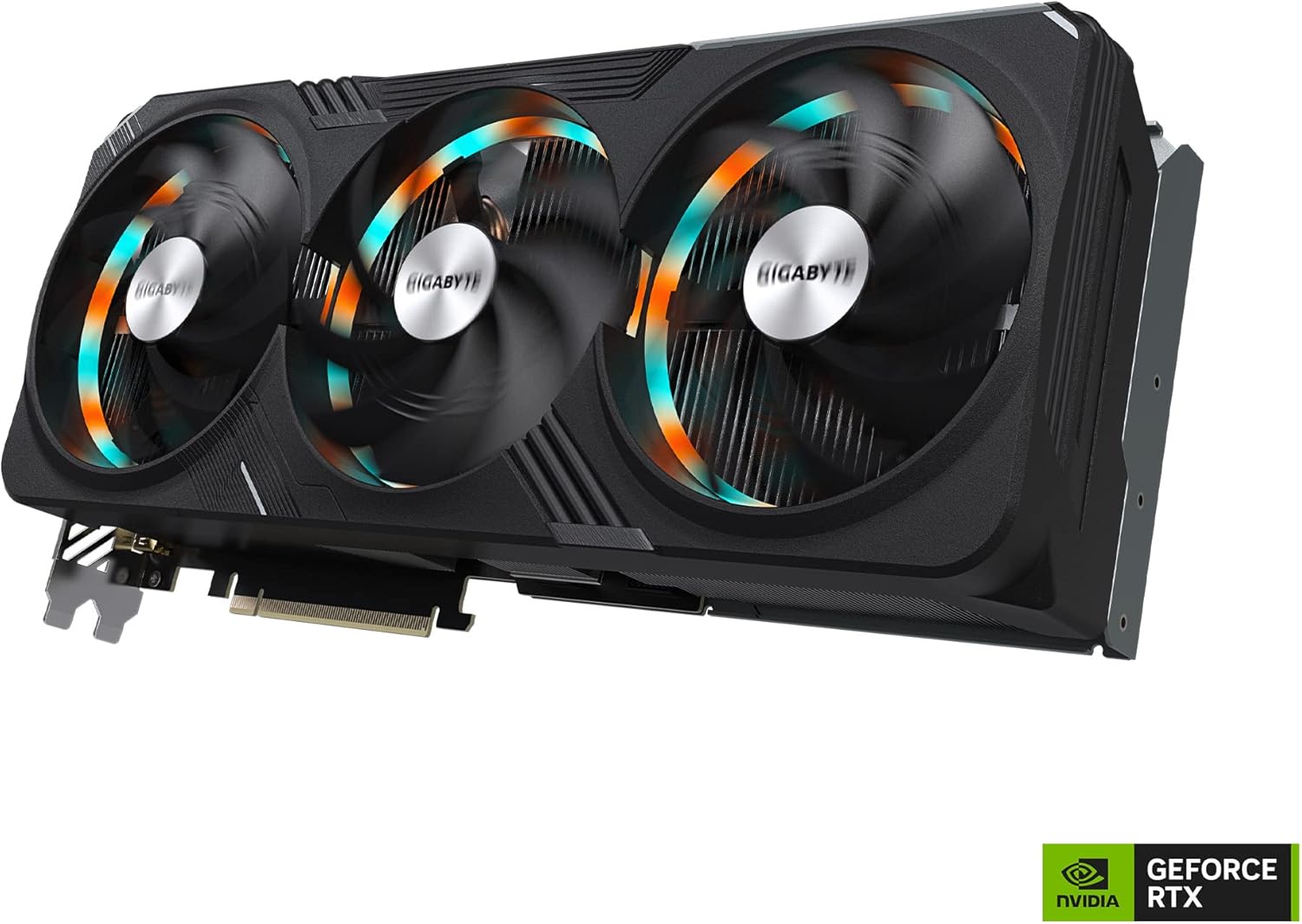

Gigabyte GeForce RTX 4090 Gaming OC 24G Graphics Card, 3X WINDFORCE Fans, 24GB 384-bit GDDR6X
Installment Calculator
Interest-free with participating bank credit cards. Final terms confirmed at checkout.
Couldn't load pickup availability
Secure Payment Methods
Cash on delivery and various payment options and installment plans.
Fast and Secure Shipping
Receive your order within 2 to 5 business days.
Customer Service
Technical support from 10 am to 12 am.
Warranty Coverage
Enjoy a 6-month to 3-year warranty through us with distributors.
GIGABYTE GeForce RTX 4090 24GB WINDFORCE OC Edition
Legendary graphics supremacy powered by Ada Lovelace AD102 architecture. Features 16,384 CUDA cores, 24GB of 384-bit GDDR6X memory, advanced high-airflow cooling, and full DLSS 3 Frame Generation support.
🎮 4K Ultra Ray Tracing Masterpiece
Run any modern title at maximum 4K settings with full path tracing and DLSS 3 Frame Generation for unbeatable high framerates.
🎨 Heavy 3D VFX & AI Deep Learning Workstation
24GB high-speed VRAM handles massive 3D scenes, 4K/8K video editing, and complex local AI model fine-tuning with zero texture swapping.

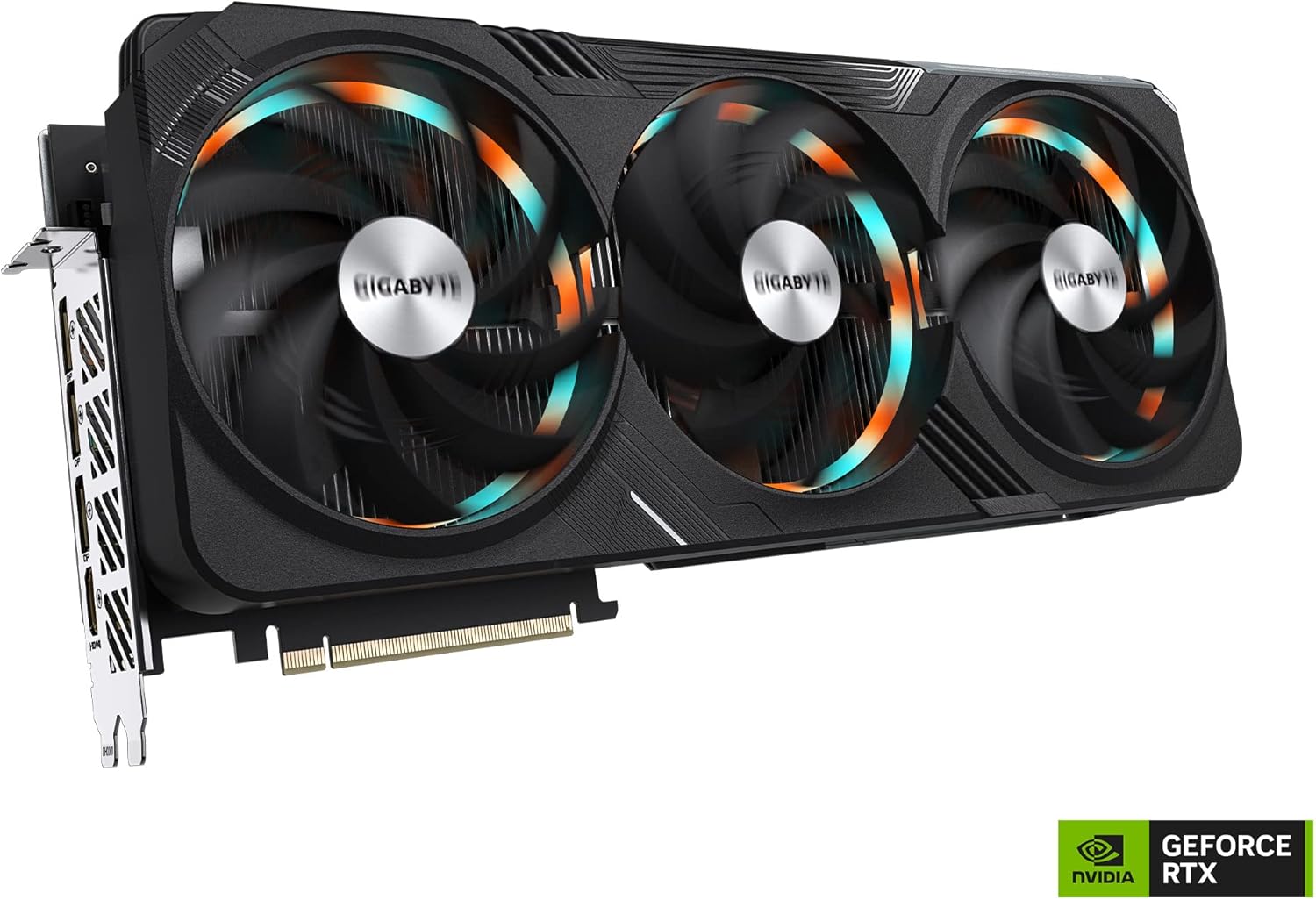

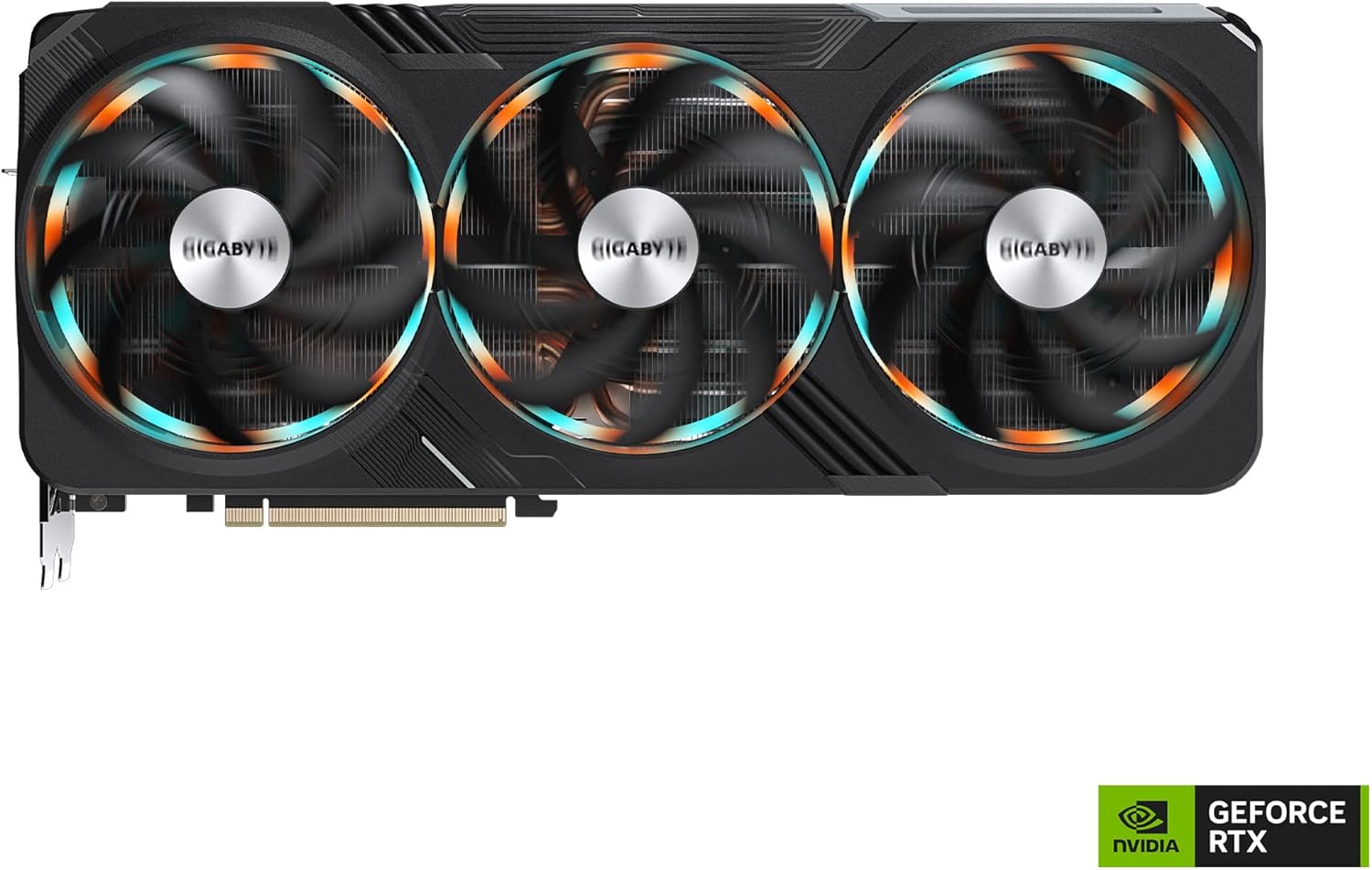

Triple High-Static Pressure Fan System
Alternate spinning fans reduce turbulence and enhance downward air pressure across the massive heatsink.

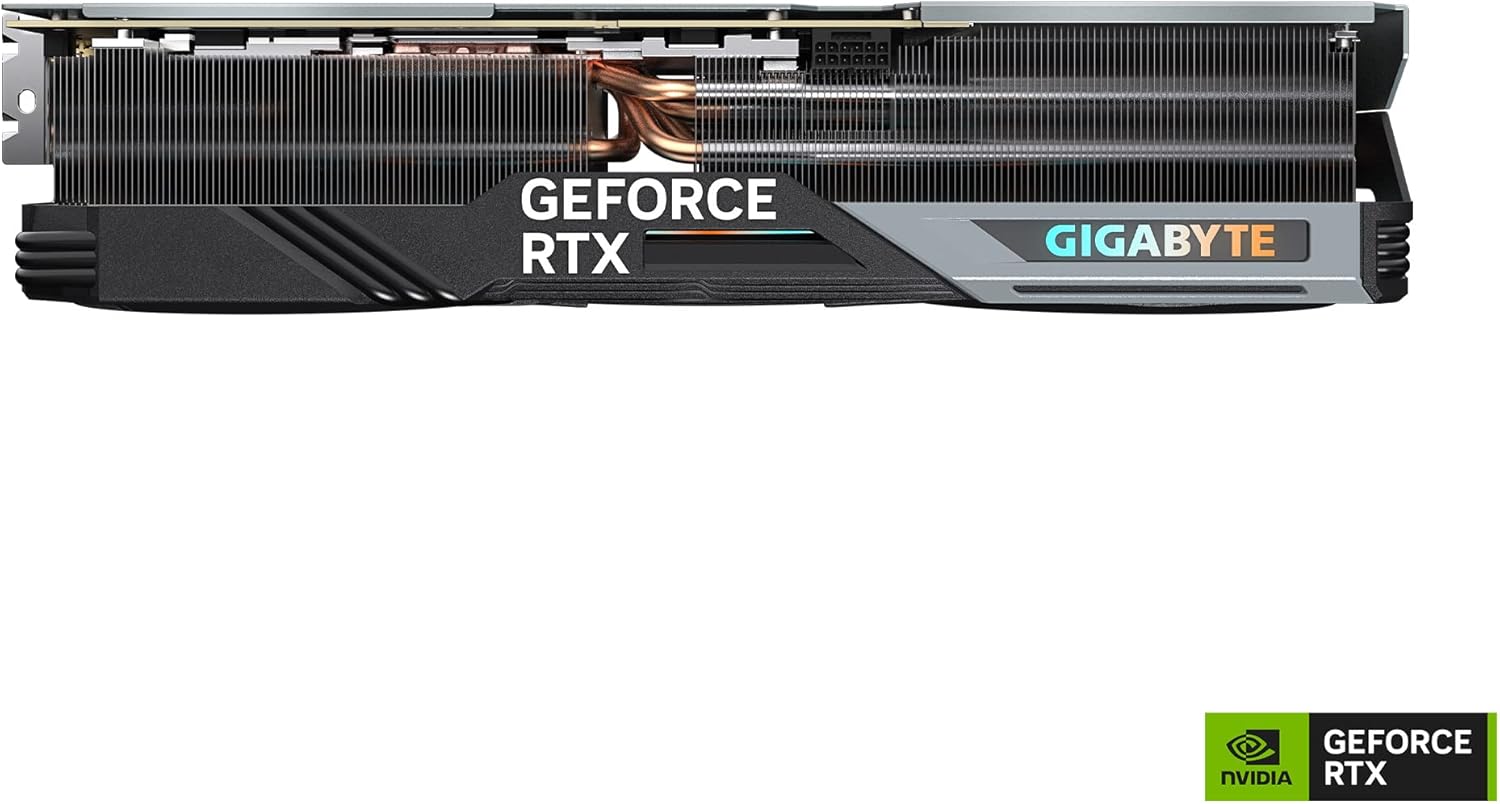

Vapor Chamber & Composite Heatpipes
Large vapor chamber directly touches the AD102 GPU core and GDDR6X chips to dissipate massive thermal loads.

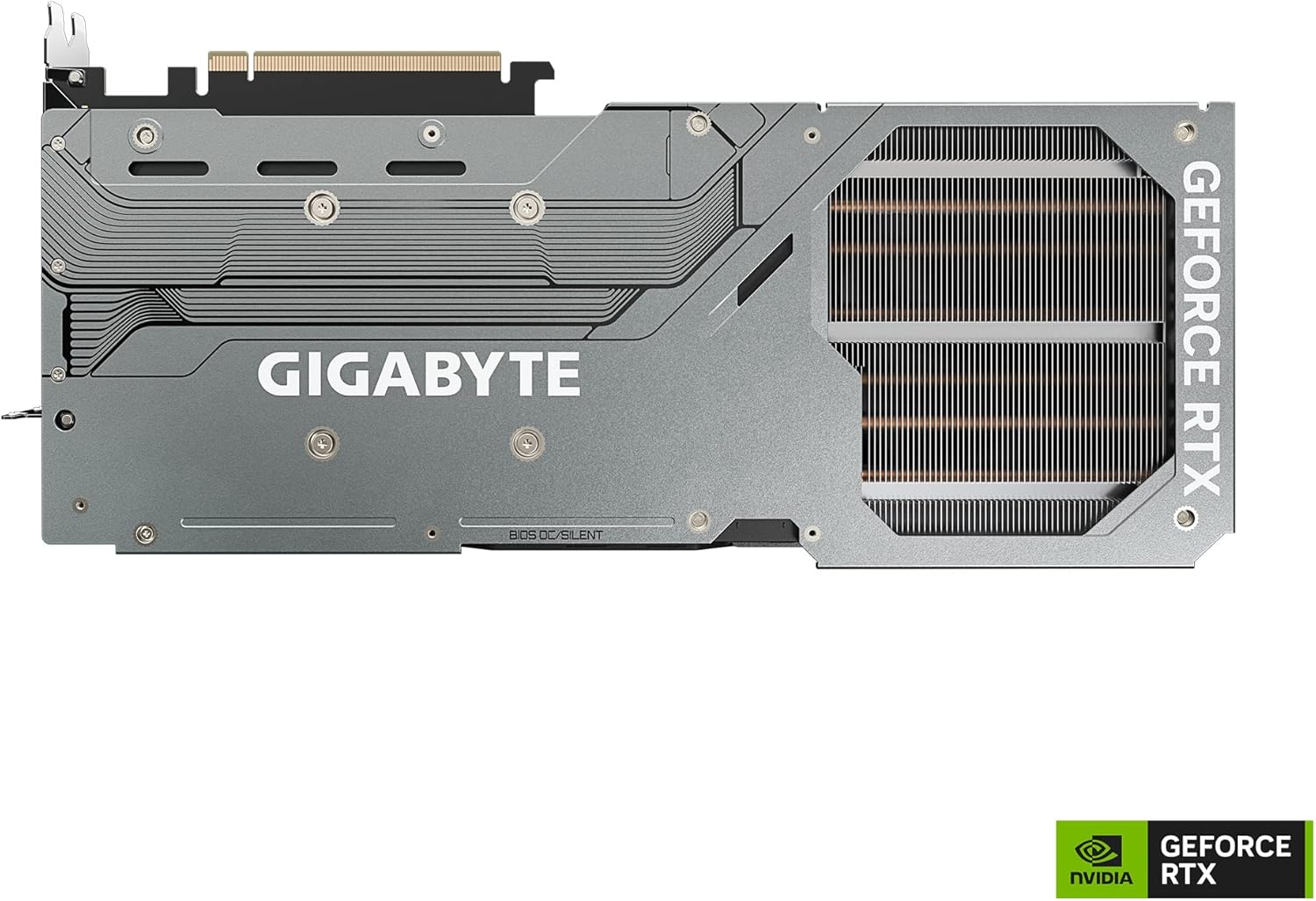

Dual BIOS & Screen Cooling Backplate
Dual BIOS switch for Silent or OC performance modes and vented metal backplate for flow-through cooling.
DisplayPort 1.4a & HDMI 2.1a Outputs
Connect up to four high-resolution monitors with full HDR and G-Sync support.
⚡ Real-World Gaming Benchmark Index
Tested Game: Cyberpunk 2077: Phantom Liberty (1440p QHD • Ultra Ray Tracing Preset • DLSS Quality & Frame Generation ON)
850W-1000W ATX 3.0 PSU
Native 16-pin 12VHPWR cable support with 80 PLUS Gold efficiency.
Gaming Processors
Zero-bottleneck pairing with Ryzen 7 9800X3D or Core i7-14700K.
High-Refresh Monitors
4K 144Hz-240Hz OLED & Fast IPS displays.
Chassis & Airflow Cases
High-airflow cases supporting 340 mm GPU clearance & anti-sag support.
| Hardware Parameter | Technical Specification |
|---|---|
| Graphics Processing Unit (GPU) | NVIDIA GeForce RTX 4090 (Ada Lovelace Architecture) |
| CUDA Cores | 16,384 Cores |
| Core Boost Clock | 2535 MHz (Factory Overclocked) |
| Memory Size & Type | 24GB GDDR6X |
| Memory Bus Width & Speed | 384-Bit • 21 Gbps |
| Total Memory Bandwidth | 1,008 GB/s |
| Bus Interface Standard | PCI Express 4.0 x16 |

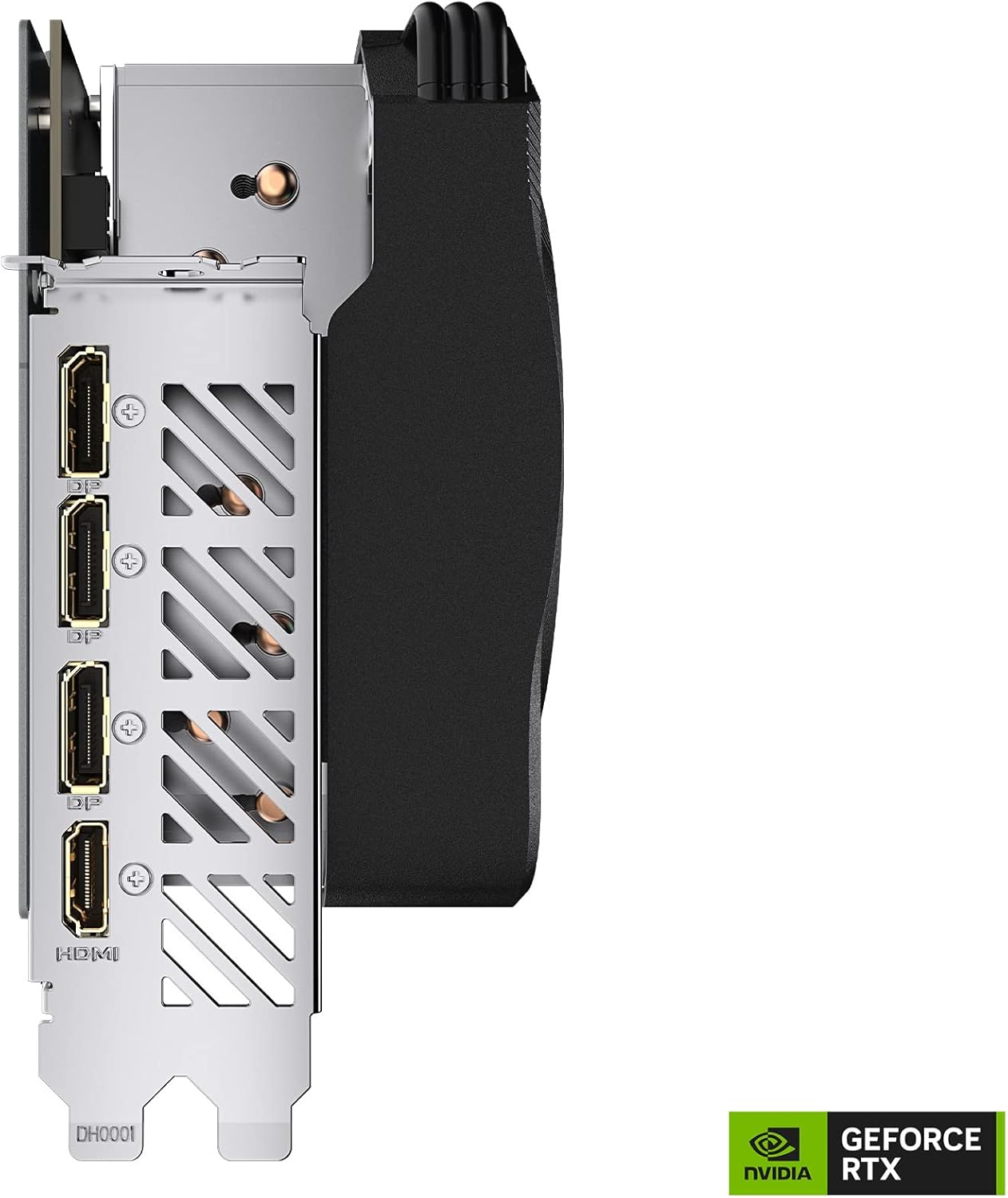

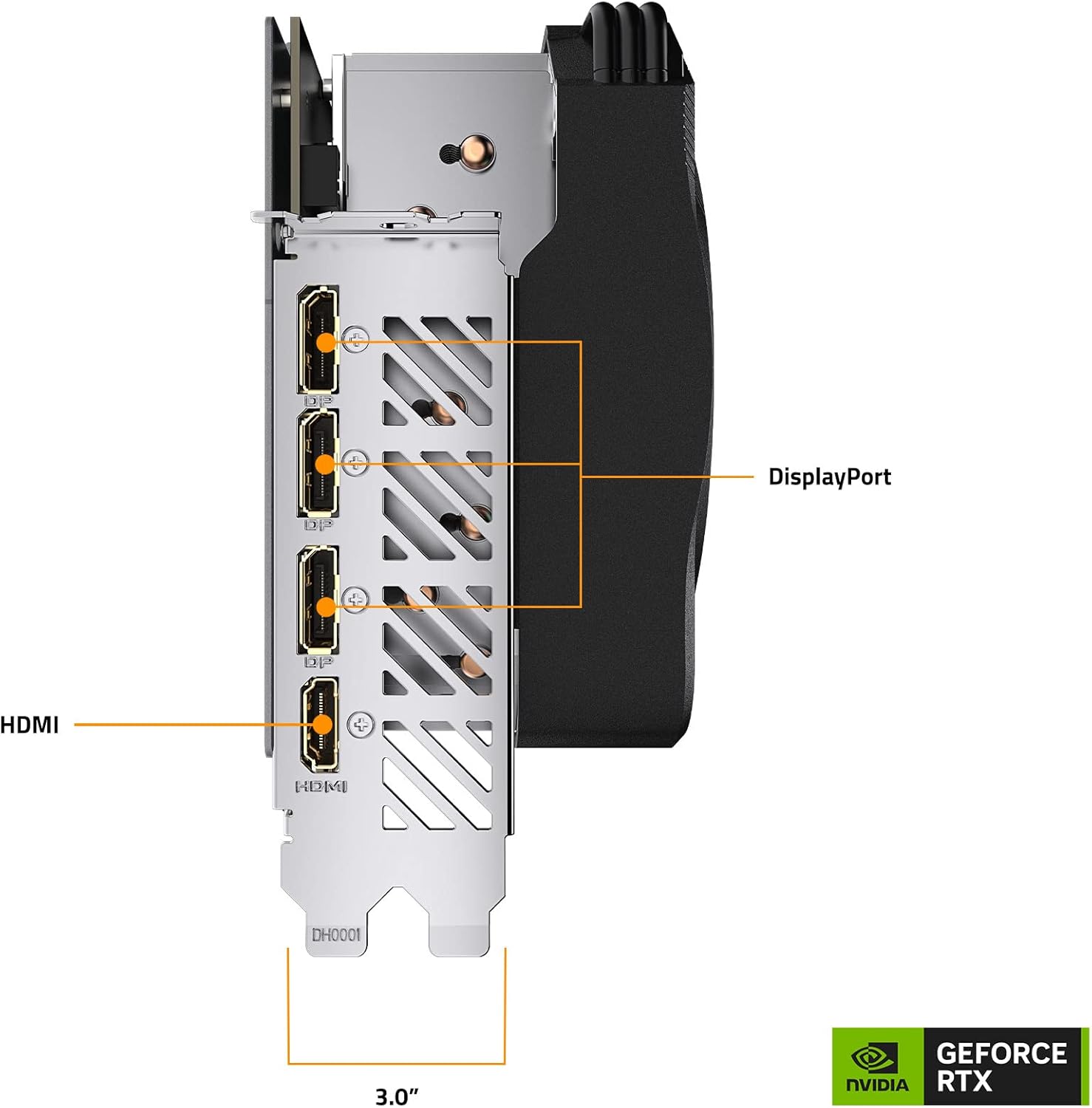

| Display Connectivity Outputs | 3x DisplayPort 1.4a • 1x HDMI 2.1a |
| Maximum Digital Resolution | 7680 x 4320 @ 60Hz (4 Displays) |

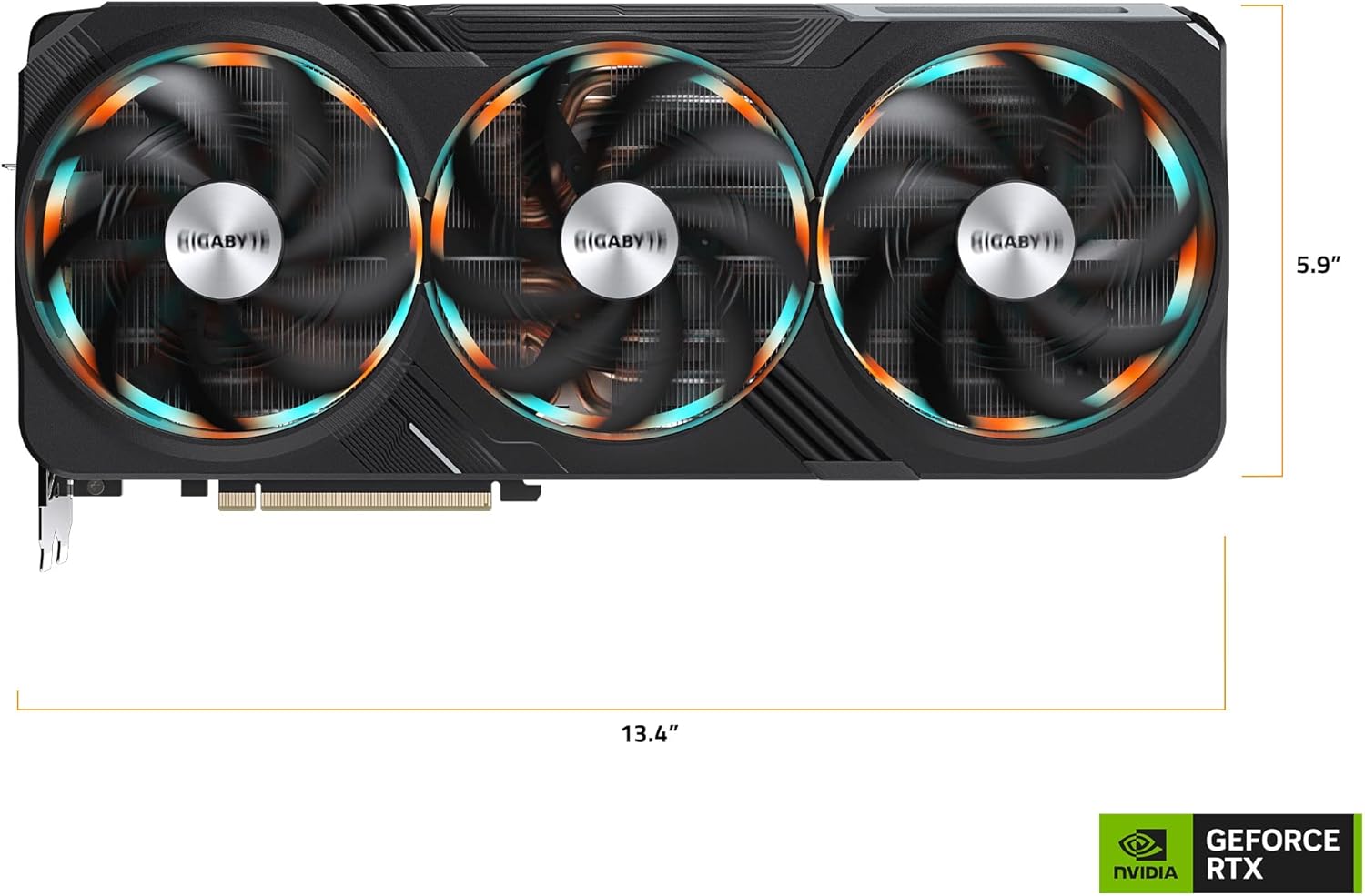

| Card Physical Dimensions | Length: 340 mm • Width: 150 mm • Height: 75.2 mm (3.7 Slot) |
| Power Connectors | 1x 16-Pin 12VHPWR (PCIe 5.0 Compatible) |
| Recommended System Power Supply | 850 Watts (1000W Recommended) |
| DirectX & API Support | DirectX 12 Ultimate • OpenGL 4.6 • Vulkan 1.3 |
