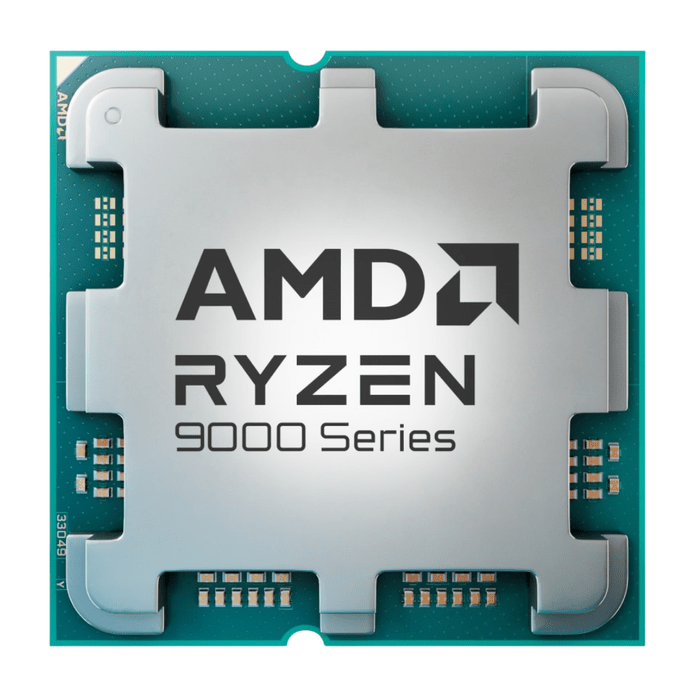

AMD Ryzen 7 9850X3D Processor 8 Cores 16 Threads 5.6 Ghz Max Boost AM5 Socket Radeon Graphics Tray
Hurry up! Only 1 item(s) items left in stock
Couldn't load pickup availability
Secure Payment Methods
Cash on delivery and various payment options and installment plans.
Fast and Secure Shipping
Receive your order within 2 to 5 business days.
Customer Service
Technical support from 10 am to 12 pm.
Warranty Coverage
Enjoy a 6-month to 3-year warranty through us with distributors.
AMD Ryzen™ 7 9850X3D | Zen 5 3D V-Cache™ 5.6GHz Extreme Gaming Processor
Engineered for uncompromising high-refresh competitive gaming, the AMD Ryzen™ 7 9850X3D leverages advanced 4nm Zen 5 silicon with an unprecedented 5.6 GHz Max Boost clock alongside 2nd-Generation AMD 3D V-Cache™. By placing the 64MB cache die beneath the compute cores, it delivers maximum thermal dissipation to the cooler, enabling peak frame pacing and esports performance.
5.6 GHz Peak Boost & Frame Pacing Perfection
The combination of 5.6 GHz single-core boost frequencies and 96MB of stacked L3 cache eliminates gaming pipeline stalls, ensuring maximum 1% low frame consistency across 240Hz, 360Hz, and 540Hz esports monitors in Counter-Strike 2, Warzone, and Apex Legends.
AVX-512 Dual Data Paths & High-Bitrate Live Encoding
Equipped with Zen 5 dual 512-bit execution pipes, the 9850X3D accelerates physics simulations, 4K rendering pipelines, and live AV1/NVENC streaming without impacting gameplay framerates.
Silicon Architecture & Visual Engineering
Verified packaging, cache hierarchy, and microarchitecture breakdown
Zen 5 Silicon Die & 5.6 GHz Boost Architecture
Optimized power delivery and binning allow the 8 Zen 5 compute cores to reach an incredible 5.6 GHz boost frequency, backed by direct IHS thermal contact for sustained multi-threaded gaming performance.
Socket AM5 Contact Grid & Native PCIe 5.0
Engineered for Socket AM5 motherboards, providing 28 total PCIe 5.0 lanes with dedicated bandwidth for next-gen graphics cards and ultra-fast Gen5 NVMe SSDs without bandwidth lane sharing.
Inverted 2nd-Gen 3D V-Cache™ Thermal Transfer
Positioning the 64MB SRAM cache underneath the cores lowers thermal impedance between the CPU silicon and your cooler, allowing aggressive Precision Boost Overdrive (PBO) profiles.
Integrated AMD Radeon™ Display Troubleshooting Graphics
Features on-die AMD Radeon™ RDNA 2 graphics (2 CUs @ 2200 MHz) with HDMI 2.1 and DisplayPort 2.1, providing reliable video display during setup or diagnostics.
Relative 1080p Esports & AAA Gaming Performance
Normalized gaming frame rate index across competitive esports and high-end AAA titles (Paired with RTX 4090)
Hardware Synergy & System Pairing Guide
Recommended motherboard, cooling, RAM sweet spot, and power requirements
Technical Specifications Matrix
Verified hardware specifications directly from manufacturer datasheets
| Processor Model | AMD Ryzen™ 7 9850X3D |
|---|---|
| CPU Architecture | Zen 5 with 2nd-Gen 3D V-Cache™ |
| Socket Compatibility | Socket AM5 (LGA 1718) |
| Core / Thread Count | 8 CPU Cores / 16 Threads |
| Base Clock Frequency | 4.8 GHz |
| Max Boost Clock Frequency | Up to 5.6 GHz |
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB (32MB On-Die + 64MB 3D V-Cache) |
| Total Cache (L2 + L3) | 104 MB |
| Process Node | TSMC 4nm FinFET (CCD) + 6nm (IOD) |
| Thermal Design Power (TDP) | 120W (PPT 162W Max) |
| Memory Support | Dual-Channel DDR5 up to 5600 MT/s Native, 6000+ MT/s AMD EXPO |
| PCI Express Lanes | PCIe 5.0 (28 Total / 24 Usable) |
| Integrated Graphics | AMD Radeon™ Graphics (2 CUs @ 2200 MHz) |
| Overclocking | Yes — Fully Unlocked Multiplier, PBO & Curve Optimizer |
| Thermal Solution | Not Included (280mm/360mm AIO Required) |
